Features

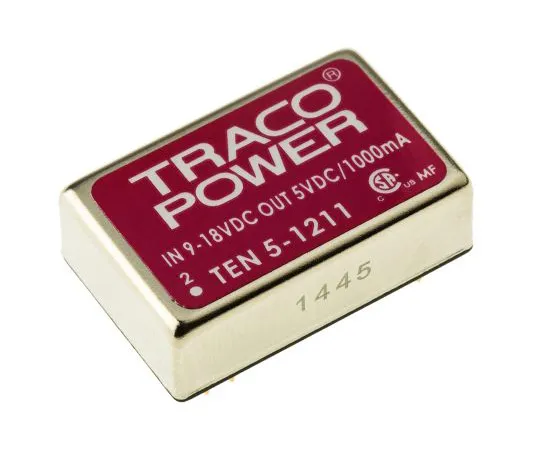

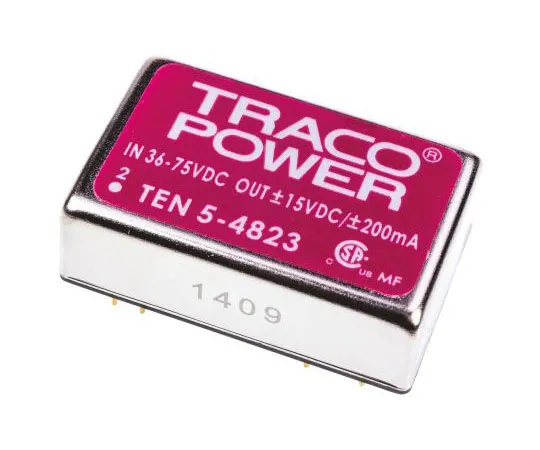

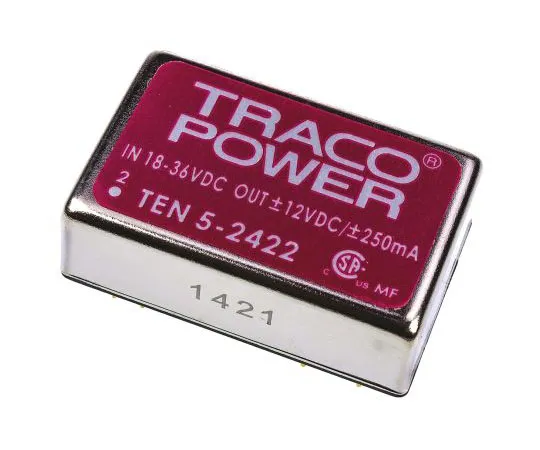

• UL 60950-1, IEC/EN 60950-1. CSA File No. 226037. 3. Traco 3.96 to 6W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEN 5 Series. The Traco Power TEN 5 series is a range of isolated, 5 Watt, DC-DC converters in a DIP-24 package with industry-standard footprint. With their high efficiency these regulated converters allows an operating temperature range of -40°C to +75°C. The full SMD design of these DC-DC converters guarantees high reliability. The TEN 5 series comes with built-in EMI input filter and complies with EN 55022 and FCC, level A without external components. Ideal applications of these DC-DC converters are in battery operated equipment, industrial process control systems, tele-data communication and any other application requiring very wide operating voltage range. Wide 2:1 input range Full SMD-design High efficiency up to 86% Ext***ed operating temperature range –40°C to 85°C I/O isolation 1500 VDC Indefinite short circuit protection Input filter to meet EN 55022, Class A and FCC, level A without external components Shielded metal case with insulated baseplate 24-pin DIP with industry standard pinout High reliability, MTBF >1 Mio. h
