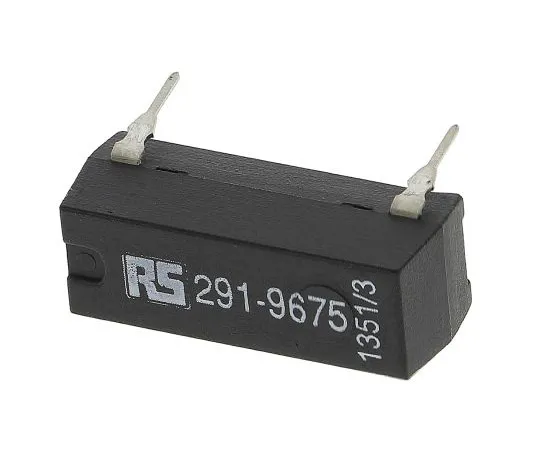

63-4754-46 SPNO Reed Relay, 0.5 A, 5V dc 291-9675
Product Description
Product Model: 63-4754-46Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4754-46
Product Brand: RS PRO
Features
- SPNO DIL Relay. Ideal for *** with mains triac trigger devices Normally open contacts with 240V ac mains switching capability Industry Standard pin configurations Coil suppression diode across pins 2 and 6 Operating temperature -20 to +70°C
Spec
- Quantity：1piece
- Contact Configuration : SPNO
- Coil Voltage : 5V dc
- Mounting Type : PCB Mount
- Maximum Switching Current AC : 0.5 A
- Maximum Switching Current DC : 0.5 A
- Maximum Switching Voltage AC : 300V
- Maximum Switching Voltage DC : 300V dc
- Coil Power : 125mW
- Coil Resistance : 200 Ω
- Length : 19.3mm
- Height : 7.5mm
- Depth : 7mm
- Dimensions : 19.3 x 7 x 7.5mm
- Isolation Coil To Contact : 2.5kV dc
- Minimum Operating Temperature : -20°C
- CODE No.:291-9675
