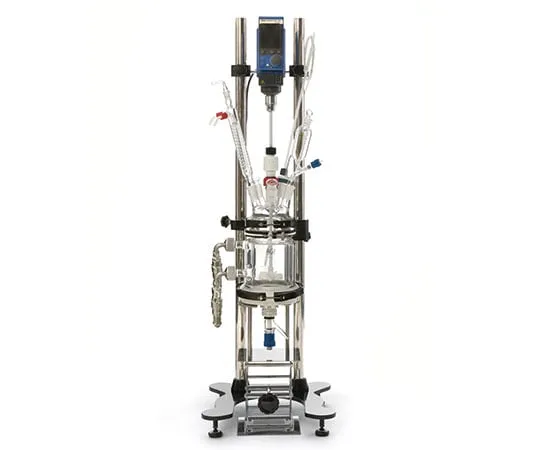

63-2589-52 Reaction Filtration Equipment (Blue Label) FR-1000DW-BL
Product Description
Product Model: 63-2589-52Product Brand: ASAHI SEISAKUSH […]
Contact Us
Product Details
Product Model: 63-2589-52
Product Brand: ASAHI SEISAKUSHO CO., LTD.
Features
- Ideal for solid phase synthesis reactions. Since the bottom of the reaction vessel is a filter, the solution can be extracted after the reaction as it is, saving the trouble of the reaction experiment with many filtration steps from preparation.
- High versatility. It ***s the same trestle as the reactor (blue label) and can be replaced with a reactor vessel.
- Space-saving design. The minimum footprint is 380 mm x 380 mm. It can also be installed in a draft.
- The special trestle is equipped with a swinging head and a turning clamp for easy cake removal and cleaning.
Spec
- Reaction tank capacity: 1 L
- Reaction Vessel Type: Double Tube Type
- Container Diameter: DN 100
- Allowable Operation Pressure in Reaction Vessel: Full Vacuum to Normal Pressure
- Allowable Operation Pressure in Media Vessel: Full Vacuum to + 0.05 MPa
- Allowable Temperature: -40 to + 200 °C
- Allowable temperature difference (delta T): 110 deg. C.
- materials of liquid contact part: Borosilicate Glass, PTFE, FKM, FFKM
- *The allowable Operation temperature dep***s on various conditions such as ancillary facilities.
- *This product does not include agitator or thermostat.
