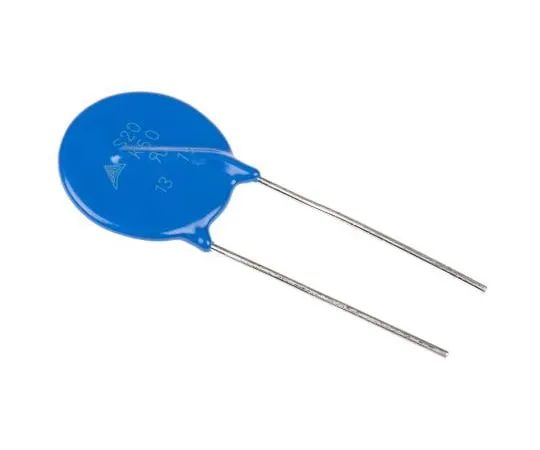

63-4753-89 EPCOS Standard Series Metal Oxide Varistor 3.8nF 100A, Clamping 135V, Varistor 82V B72220S0500K101
Product Description
Product Model: 63-4753-89Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-4753-89
Product Brand: EPCOS
Features
- UL, CSA, VDE. Metal Oxide Varistors Standard Series. Standard radial epoxy-coated MOV with tinned-copper leads. Tinned copper wire leads with a ceramic body coated with epoxy resin Rated for surge current (8//20 μs) and for energy (2ms)
Spec
- Quantity：1bag(5pieces)
- Varistor Voltage : 82V
- Maximum AC Voltage Rating : 50V
- Maximum DC Voltage Rating : 65V
- Clamping Voltage : 135V
- Clamping Current : 100A
- Energy : 27J
- Series : Standard
- Diameter : 21.5mm
- Maximum Surge Current : 6500A
- Capacitance : 3.8nF
- Thickness : 4.3mm
- Dimensions : 21.5 (Dia.) x 4.3mm
- Lead Pitch : 10mm
- CODE No.:289-7626
