63-4753-87 EPCOS Standard Series Metal Oxide Varistor 1.37nF 50A, Clamping 200V, Varistor 120V B72214S0750K101
Product Description
Product Model: 63-4753-87Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-4753-87
Product Brand: EPCOS
Features

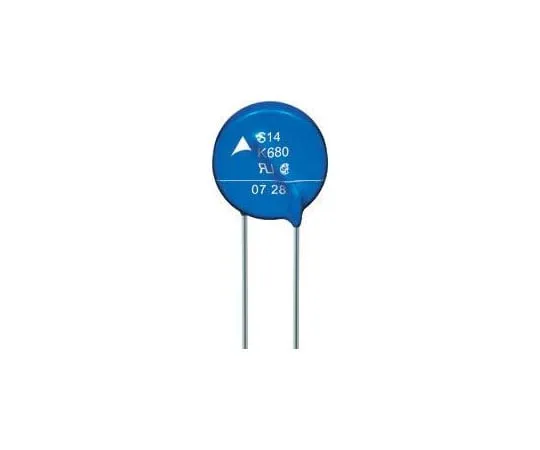

- UL, CSA, VDE. Metal Oxide Varistors Standard Series. Standard radial epoxy-coated MOV with tinned-copper leads. Tinned copper wire leads with a ceramic body coated with epoxy resin Rated for surge current (8//20 μs) and for energy (2ms)
Spec
- Quantity：1bag(5pieces)
- Varistor Voltage : 120V
- Maximum AC Voltage Rating : 75V
- Maximum DC Voltage Rating : 100V
- Clamping Voltage : 200V
- Clamping Current : 50A
- Energy : 20J
- Series : Standard
- Diameter : 15.5mm
- Maximum Surge Current : 4500A
- Capacitance : 1.37nF
- Thickness : 4.2mm
- Dimensions : 15.5 (Dia.) x 4.2mm
- Lead Pitch : 7.5mm
- CODE No.:289-7137
