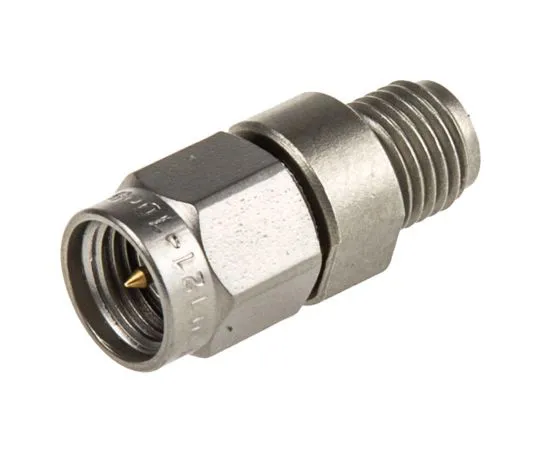

63-4752-88 50Ω RF Attenuator Straight SMA Connector SMA Plug to Socket 10 dB, Operating Frequency DC to 18GHz R411810121
Product Description
Product Model: 63-4752-88Product Brand: Radiall Feature […]
Contact Us
Product Details
Product Model: 63-4752-88
Product Brand: Radiall
Features
- Radiall 50 Ohm SMA RF Coaxial Attenuators. 50 ohm SMA plug to socket RF coaxial attenuators with a PTFE dielectric and gold plated centre contact. 50 ohm SMA attenuators with part number R4118xx124 have a DC 3 GHz operating frequency range, 1 W average power @ 25°C and a nickel plated brass body. 50 ohm SMA attenuators with part number R4118xx121 have an DC 18 GHz operating frequency range, 2 W average power @ 25°C and a passivated stainless steel body. 50 ohm SMA attenuators with part number R4118xx122 have a DC 26.5 GHz operating frequency range, 2 W average power @ 25°C and a passivated stainless steel body.
Spec
- Quantity：1piece
- Interface Type : SMA Plug to Socket
- Attenuation : 10 dB
- Body Orientation : Straight
- Impedance : 50Ω
- Operating Frequency : DC to 18GHz
- Body Plating : Nickel
- Cable Type : Coaxial
- Contact Plating : Gold
- Contact Material : Beryllium Copper
- Connector Type : SMA
- G***er A : Male
- G***er B : Female
- CODE No.:285-9602
