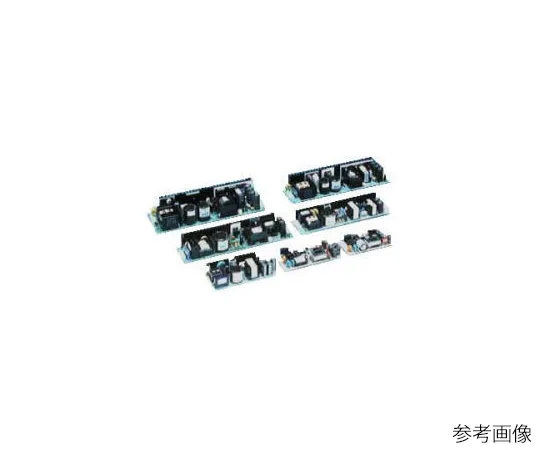

63-3084-73 Switching Power Supply (30 W/15 V) VS30C15
Electronic/Electrical Parts and Controll Equipments

63-3084-73 Switching Power Supply (30 W/15 V) VS30C15

model: 63-3084-73
brand: TDK-Lambda Corporation

Product Description

Product Model: 63-3084-73Product Brand: TDK-Lambda Corp […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-3084-73
Product Brand: TDK-Lambda Corporation

Features

  • A low-cost 100VAC input and single-output (15 V/2.0 A) circuit board switching power supply. It can be ***d for a wide range of applications such as game devices, printers, and communication terminals.
  • Main specifications Input voltage range: AC85~132 V (47~440 Hz), DC110~175 V Output voltage variable range: ±10% Cooling method: Natural air cooling Rated DC output voltage/current: 15 V/2.0 A Operating ambient temperature: -10 to +60°C (-10 to +50°C: 100%, +60°C: 70%) Withstand voltage: between input and output: 2kVAC, between input and FG: 2kVAC, between output and FG: 500VAC Each 1 minute Safety standard: UL60950-1, CSA C22.2 No. 60950-1, EN60950-1 Approved, Electrical Appliance and Material Safety Law Compliant Noise terminal voltage: VCCI-B, FCC Class B Compliant Overvoltage protection, Overcurrent protection External dimensions: 50 x 132 x 23 mm
