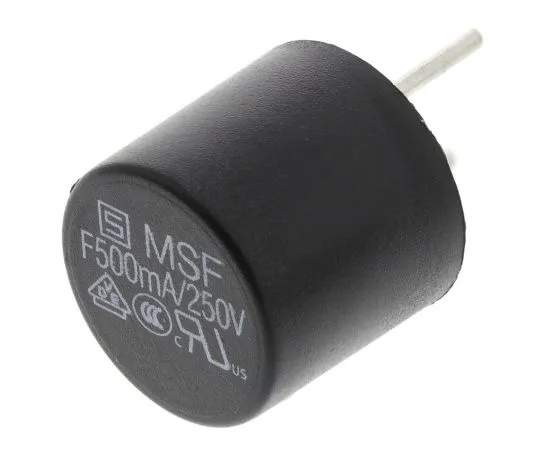

63-4752-63 Schurter 500mA Radial F Leaded PCB Mount F***, 250V ac 34.6011
Product Description
Product Model: 63-4752-63Product Brand: Schurter Featur […]
Contact Us
Product Details
Product Model: 63-4752-63
Product Brand: Schurter
Features
- EN 60127, IEC 127-3//3, DIN-VDE 0820. Microf*** f***s - MSF and MST series. Miniature f***s for soldering onto PCB or carriers. Fast-acting (MSF) or time-delay (MST) f***s. Low breaking capacity.
Spec
- Quantity：1bag(10pieces)
- Current Rating : 500mA
- Lead Orientation : Radial
- Voltage Rating : 250V ac
- F*** Speed : F
- Body Material : Thermoplastic
- Body Diameter : 8.5mm
- Body Height : 8.5mm
- Wire Length : 4.3mm
- Wire Pitch : 5.08mm
- Breaking Capacity at Maximum Voltage Rating : 35 A
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- Wire Diameter : 0.64mm
- CODE No.:284-5079
