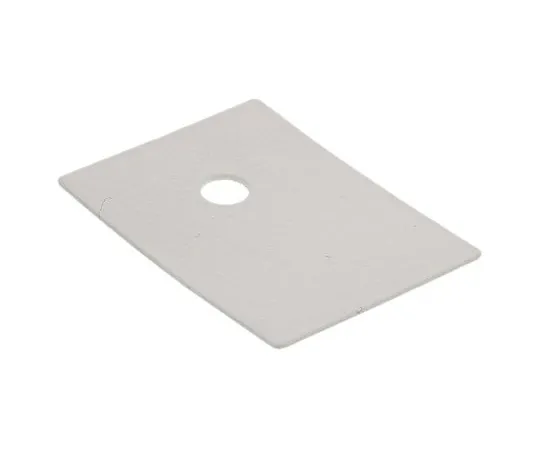

63-4752-44 Thermal Interface Pad, Fibreglass, 3.5W/m·K, 28.96 x 20.57mm 0.015in SP2000-0.015-00-122
Electronic/Electrical Parts and Controll Equipments

63-4752-44 Thermal Interface Pad, Fibreglass, 3.5W/m·K, 28.96 x 20.57mm 0.015in SP2000-0.015-00-122

model: 63-4752-44
brand: Bergquist

Product Description

Product Model: 63-4752-44Product Brand: Bergquist Featu […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4752-44
Product Brand: Bergquist

Features

  • Bergquist Sil-Pad 2000. Bergquist Sil-Pad 2000 is a high performance, thermally conductive insulator designed for demanding military/aerospace and other commercial applications. Sil-Pad 2000 is a grease-free, conformable material capable of meetingor exceeding both the thermal and electrical requirements of high-reliability electronic packaging applications. High-performance insulators, thermo-conductive and ultra reliable Int***ed for highly demanding military and aerospace applications Comply with military standards in their applications Boron nitride reinforced silicon elastomer The Sil-Pad 2000 is an insulator designed to maximise thermal and dielectric performance

Spec

  • Quantity:1bag(10pieces)
  • Dimensions : 28.96 x 20.57mm
  • Thickness : 0.015in
  • Length : 28.96mm
  • Width : 20.57mm
  • Thermal Conductivity : 3.5W/m·K
  • Material : Fibreglass
  • Minimum Operating Temperature : -60°C
  • Maximum Operating Temperature : +200°C
  • Hardness : Shore A 90
  • Material Trade Name : Sil-Pad 2000
  • Operating Temperature Range : -60 → +200 °C
  • CODE No.:283-3672
