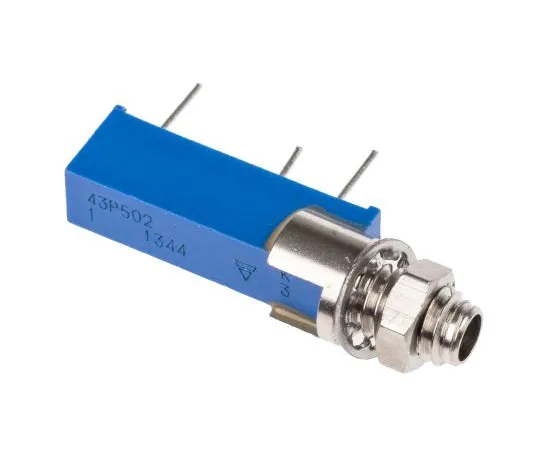

63-4751-26 5kΩ Panel Mount, Through Hole Trimmer Potentiometer 0.5W Side Adjust Vishay 43P Series M43P502KB30T601
Product Description
Product Model: 63-4751-26Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4751-26
Product Brand: Vishay
Features
- Body colour is now blue. 19mm ( in.) 500mW Rectangular End Adjust 43P Series Panel Mount. Unique slider block for excellent setability Multi-finger wiper to minimise CRV Sealed to withstand immersion board washing Moulded body with built-in standoffs Wiper idles at *** of travel
Spec
- Quantity：1piece
- Maximum Resistance : 5kΩ
- Mounting Type : Panel Mount, Through Hole
- Number of Turns : 20
- Orientation : Side Adjust
- Power Rating : 0.5W
- Series : 43P
- Termination Style : Pin
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- Length : 27.81mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- CODE No.:277-0199
