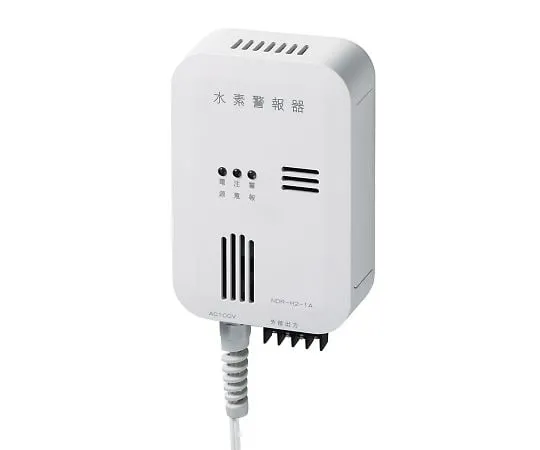

3-9805-01 Hydrogen Detector NDR-H2-1A
model:
3-9805-01
category:
toner
Product Description
Product Model: 3-9805-01 Features This is a hydrogen al […]
Contact Us
Product Details
Product Model: 3-9805-01
Features
- This is a hydrogen alarm using a contact combustion type gas sensor made in-ho***.
- 3 levels of hydrogen are displayed by LED. (Energization, trouble, gas alarm)
Spec
- Target gas: hydrogen
- Size (mm): 100 x 45 x 150
- Detection Method: Contact Combustion Method
- Measurement range: 500 to : 20000 ppm (Range error 15%)
- Warning concentration: 500 ±100 ppm (Standards)
- Alarm: lamp/light (automatic return), buzzer sound
- Display: LED (energization, trouble, gas alarm)
- External output: 1a contact relay (AC100V DC 30 V 0.5 A except resistive load)
- Operating temperature range: 10 - + 40 ℃ 95 %RH or less (non-condensing)
- Power supply : AC100V 50/60Hz
- Weight: about 340g
