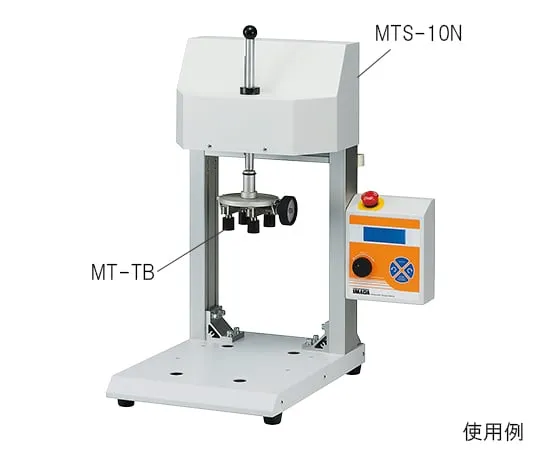

3-4813-01 Motor Torque Stand 140mm MTS-10N
model:
3-4813-01
category:
toner
Product Description
Product Model: 3-4813-01 Features Since the rotation sp […]
Contact Us
Product Details
Product Model: 3-4813-01
Features
- Since the rotation speed is kept constant, more precise torque measurement is possible.
- Supports a variety of measurements such as automatic measurement based on set values and torque-angle relationship analysis.
- Various samples can be measured by changing the chuck jig.
Spec
- Model number: MTS-10N
- Specification: Body
- Supported sample (mm): Height: 140
- Size (mm): 432 x 400 x 575
- Allowable load: 10N-m
- Speed adjustment range: 3 - 90°/sec
- Body weight: Approx 14kg
- Power supply: AC 100 - 240V, 50/60Hz
- Function: Manual operation, JOG operation, automatic operation, speed control
- Accessories: Power cord, Connecting cable for torque meter, Centering jig, Preliminary f***, Tool
