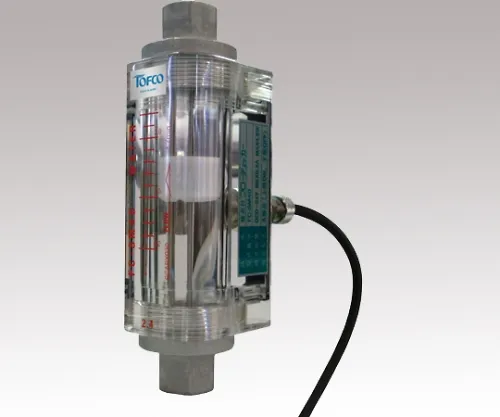

2-7736-01 Flowmeter (With Contact for Water) FC-SM40-11-B6-02
model:
2-7736-01
category:
toner
Product Description
Product Model: 2-7736-01 Spec Model number: FC-SM40-11- […]
Contact Us
Product Details
Product Model: 2-7736-01
Spec
- Model number: FC-SM40-11-B6-02
- Switch contact: A contact
- Connection port: Rc3/8
- Maximum flow rate (L/min): 6
- Measurement target: Water
- Flow rate accuracy: +/- 5% at FS
- Flow direction: Down -> up
- With alarm contact
- Highest pressure: 0.5MPa (G)
- Power supply: DC0 - 24V MAX 0.2A
- Cord length: 2m
- Material: Case, taper tube/PC (polycarbonate)
- Size: 42 x 90 x 150mm
