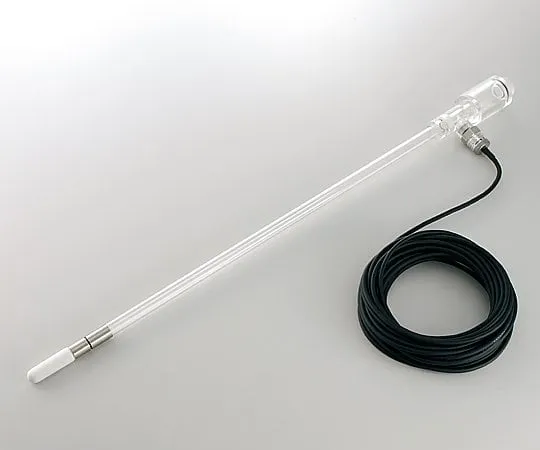

2-4404-01 Soil Moisture Content Sensor HD001020010 HD-001-0200-10
model:
2-4404-01
category:
toner
Product Description
Product Model: 2-4404-01 Features The water in the sens […]
Contact Us
Product Details
Product Model: 2-4404-01
Features
- The water in the sensor is absorbed to the outside and the internal pressure is lowered, and this pressure can be ***d to determine the moisture content of the soil.
- Parts such as tank, pipe, porous cup and negative pressure sensor can be detached.
- Built-in air tank allows measurement without water supply for a long time.
- Negative pressure sensors have high accuracy and excellent environmental resistance.
Spec
- Tank unit dimensions (mm): φ50 x 85
- Pipe length (mm): 200
- Measuring method: Tension meter method
- Measurement range: 0 to -100kPa
- Operating temperature range: 0 - 60℃ (Do not freeze)
- Tank unit material: Acrylic
- Pipe specification: φ18mm (PC (polycarbonate))
- Porous-cup specification: φ18mm (alumina, mullite)
- Joint metal fitting: Stainless steel (SUS304)
- O-ring material: NBR (nitrile rubber),
- Pressure sensor: Pressure sensor with stainless steel structure
- Liquid junction material Stainless steel (SUS316L, SUS316), NBR (nitrile rubber),
- Power supply: DC12 - 28V
- Consumption current: 6mA or less
- Output voltage: DC1-2V
- Accuracy: ±0.5%FS or less (linearity: ±0.3%FS or less)
- Cable: φ6 vinyl x 10m
- Structure: IP65
- Model number: HD-001-0200-10
