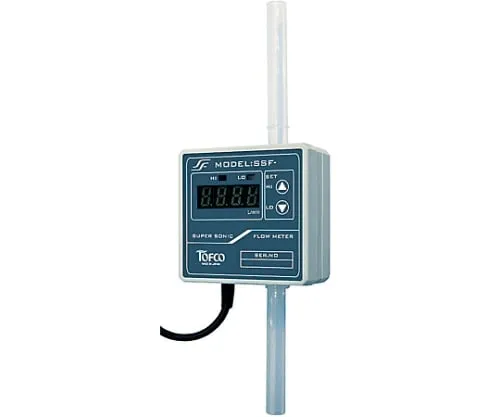

2-2531-03 Karman Vortex Flow Meter SSF20-T1
model:
2-2531-03
category:
toner
Product Description
Product Model: 2-2531-03 Spec Model number: SSF-20-T1 F […]
Contact Us
Product Details
Product Model: 2-2531-03
Spec
- Model number: SSF-20-T1
- Flow rate (L/min): 2 - 40.0
- Connection tube diameter (outer diameter x inner diameter): φ19.0 x φ16.0mm
- Application fluid: Ultrapure water, pure water, liquid chemicals
- Used fluid temperature range: 5 - 85℃
- Maximum operating pressure: 0.5MPa (G) at 25℃
- Accuracy: +/- 1.5% at FS
- Material: Body, liquid junction/PFA (fluorine resin), Caver, amp case/PP (polypropylene), Panel/polyester, Cable guard/FPM (fluorine rubber)
- Power supply: DC24V +/- 10% (120mA or less)
- Cable length: 2m
- Size: 61.4 x 57 x 59.1mm
- Length: 228mm
- Weight: Approx 300g
