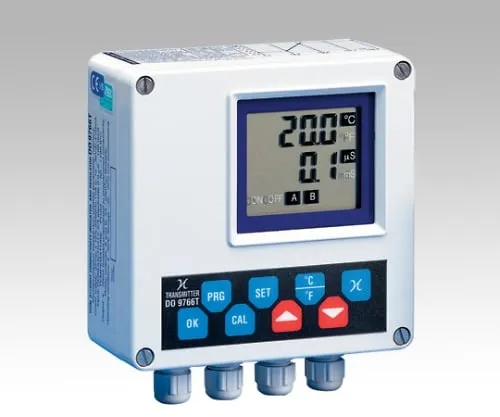

1-3751-01 Conductivity Transmitter DO9766T-R1
model:
1-3751-01
category:
toner
Product Description
Product Model: 1-3751-01 Features It is easy to see wit […]
Contact Us
Product Details
Product Model: 1-3751-01
Features
- It is easy to see with a large LCD display with two levels.
Spec
- Model number: DO9766T-R1
- Body (wall-mounted type)
- pH: Measurement range/-1.00 to +15.00pH, Accuracy/0.1%rdg +/- 1 digit +/- 0.01%pH/℃ (temperature drift)
- ORP: Measurement range/-1999 to +1999mV, Accuracy/0.1%rdg +/- 1 digit +/- 0.01%pH/℃ (temperature drift)
- Temperature: Measurement range: -50 to +199.9℃, Accuracy: 0.2℃ +/- 0.1%rdg +/- 2 digit +/- 0.01℃/℃
- Output: Analog/4.00 - 20.00mA (pH/ORP selection, scaling available), Relay/C contact (to 225 seconds delay setting available)
- Power supply: AC100V +/- 10%
- Dustproof, waterproof: DO9765T/IP64, DO9785T/IP54
- Size: 122 x 57 x 120mm
- Measurement range: Conductivity/0.0 - 199.9ms, Temperature/-50 to +199.9℃
- Accuracy (temperature drift): Conductivity/0.5%rdg +/- 2 digits +/- 0.01%/℃, Temperature/0.2℃ +/- 0.1%rdg +/- 0.01℃/℃
- Output: Analog/4 - 20mA (scaling available), Relay/C contact (to 250 seconds delay setting available)
- Power supply: AC100V +/- 10%
- Dustproof, waterproof: IP64
