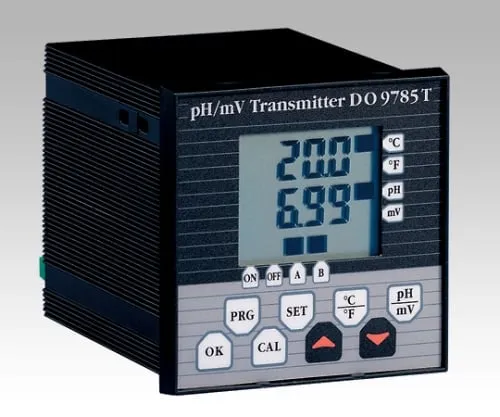

1-3750-02 pH Transmitter DO9785T
model:
1-3750-02
category:
toner
Product Description
Product Model: 1-3750-02 Features It is easy to see wit […]
Contact Us
Product Details
Product Model: 1-3750-02
Features
- It is easy to see with a large LCD display with two levels.
Spec
- Model number: DO9785T
- Body (built-in panel type)
- Size (mm): 96 x 126 x 96
- pH: Measurement range/-1.00 to +15.00pH, Accuracy/0.1%rdg +/- 1 digit +/- 0.01%pH/℃ (temperature drift)
- ORP: Measurement range/-1999 to +1999mV, Accuracy/0.1%rdg +/- 1 digit +/- 0.01%pH/℃ (temperature drift)
- Temperature: Measurement range/-50 to +199.9℃, Accuracy/0.2℃ +/- 0.1%rdg +/- 2 digit +/- 0.01℃/℃
- Output: Analog/4.00 - 20.00mA (pH/ORP selection, scaling available), Relay/C contact (to 225 seconds delay setting available)
- Power supply: AC100V +/- 10%
- Dustproof, waterproof: DO9765T/IP64, DO9785T/IP54
