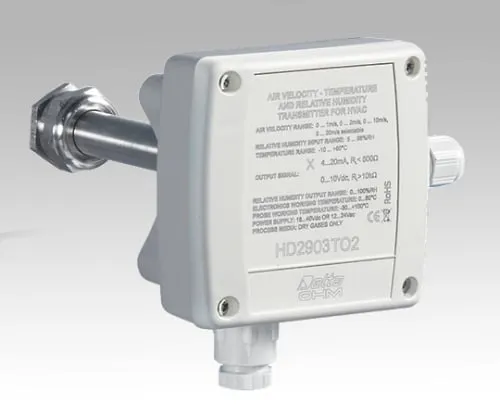

1-3748-01 Wind Speed Transmitter HD2903TO2
model:
1-3748-01
category:
toner
Product Description
Product Model: 1-3748-01 Features Suitable for air cond […]
Contact Us
Product Details
Product Model: 1-3748-01
Features
- Suitable for air conditioning and ventilation applications (HVAC, BEMS) and other wind speed controls.
- The probe is of the rear type.
- The flange for fixing the probe (sold separately) can be attached to the duct.
Spec
- Model number: HD2903TO2
- Body
- Measurement range: 0.05 - 1, 2, 10, 20m/s
- Accuracy: 0 - 1, 2m/s/+/- (0.04m/s + 2% of measured value), 0 - 10, 20 +/- (0.2m/s + 3% of measured value)
- Analog output: 4 - 20mA
- Probe material: Stainless steel (AISI304)
- Power supply: DC16 - 40V or AC12 - 24V +/- 10%
- Size: 84 x 80 x 44mm (excluding probe), Probe/φ12 x 250mm
- Dustproof, waterproof: IP67
