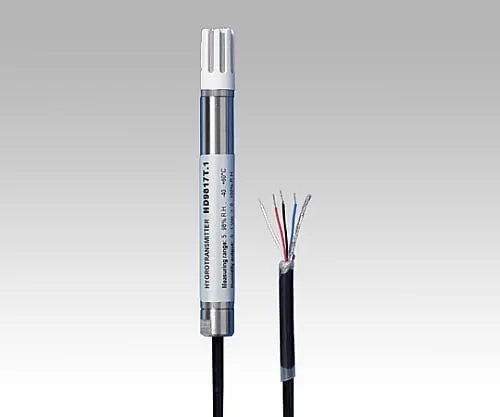

1-3745-01 Thermo-Hygro Transmitter HD9817T1
model:
1-3745-01
category:
toner
Product Description
Product Model: 1-3745-01 Features Compact size and can […]
Contact Us
Product Details
Product Model: 1-3745-01
Features
- Compact size and can be installed.
- Can also be ***d for meteorological and environmental measurements.
Spec
- Model number: HD9817T1
- Body
- Measuring method: Temperature/platinum sensor Pt100 (DIN1/3 class B), Humidity/capacitance type
- Measurement range: Temperature/-40 to +60℃, Humidity/0 - 100%RH
- Accuracy: Temperature/+/- 0.2℃ +/- 0.15% of measured value, Humidity/+/- 2%RH (10 - 90%RH), +/- 2.5%RH (other)
- Output: Analog/0 - 1V
- Power supply: 5 - 35VDC
- Size: φ14 x 137.5mm
- Dustproof, waterproof: IP65
