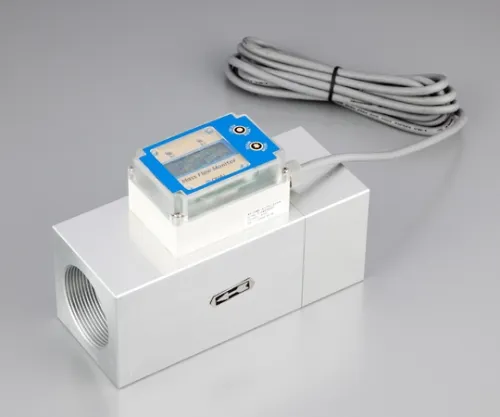

1-3722-01 Wide-Range Flow Meter TV1025-A12G-113A
model:
1-3722-01
category:
toner
Product Description
Product Model: 1-3722-01 Features Since it has excellen […]
Contact Us
Product Details
Product Model: 1-3722-01
Features
- Since it has excellent sensitivity in the low flow range, it can be ***d for compressed air usage control and leak detection.
- It can be mounted horizontally and vertically, and the display part can be rotated every 90°.
Spec
- Model number: TV1025-A12G-113A
- Flow rate (kL/h): 0.6 - 360 *at 0.5MPa (G)
- Connection port size: Rc1
- Measurement target: Compressed air, nitrogen
- Responsiveness: 4 seconds or less
- Used fluid temperature range: 0 - 50℃
- Operation pressure range: 0 - 0.78MPa (G)
- Alarm: 2 points (settings, hysteresis, upper/lower limit), alarm determination the lowest limit value (OFF near flow rate 0 ) settings available
- Output: Flow rate pulse (1 - 240ms, settings available), flow rate analog (4 - 20mA)
- Power supply: DC24V +/- 10% 150mA (MAX)
- Weight: 1.9kg
- Dustproof, waterproof: IP65
