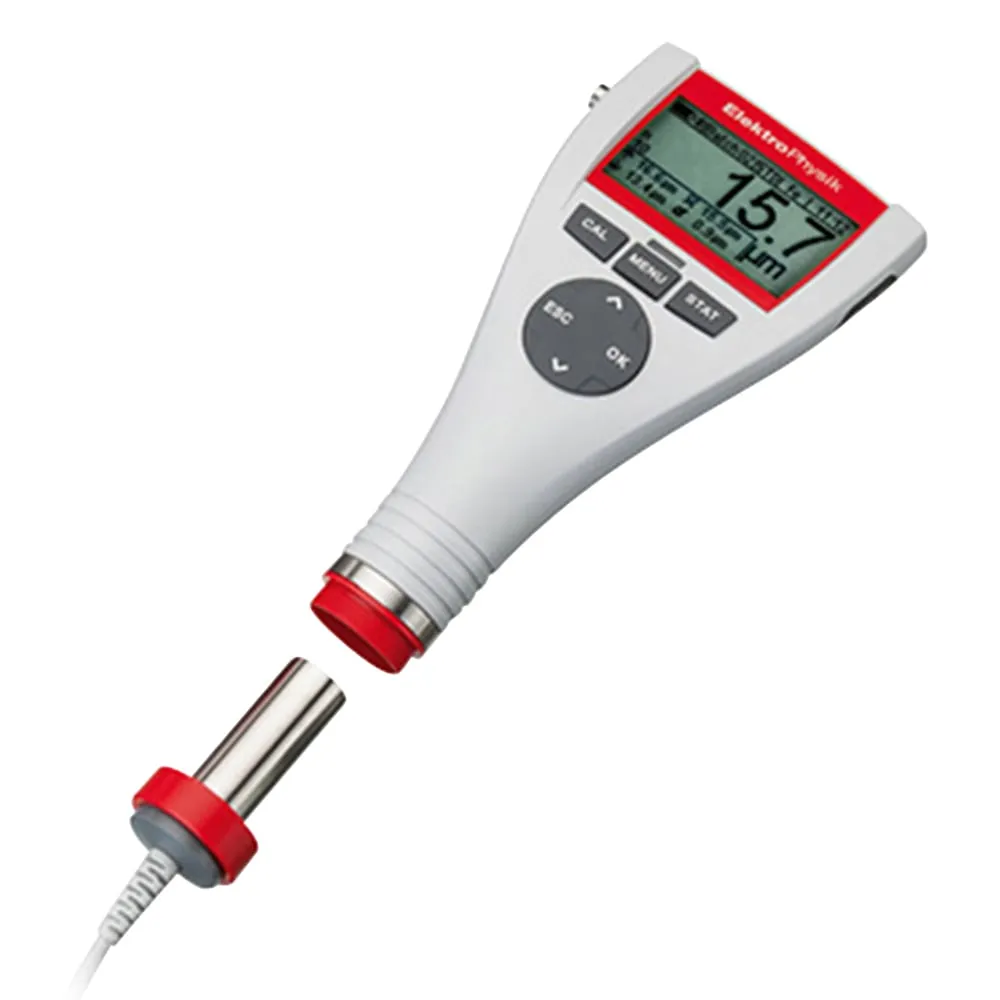

1-3242-21 Film Thickness Meter (Mini-Test) With Built-In Probe 725-F-1.5
model:
1-3242-21
category:
toner
Product Description
Product Model: 1-3242-21 Features The thickness of the […]
Contact Us
Product Details
Product Model: 1-3242-21
Features
- The thickness of the coating film on the surface of the object to be measured.
- It is a SIDSP sensor that digitally processes signals internally, and has excellent reproducibility.
- You can transfer data to computer using the included USB cable or Bluetooth ®.
Spec
- Model number: 725 F -1.5
- Type: Probe built-in type
- Measuring object: iron
- Measuring method: iron/Electromagnetic induction type, non-ferrous/eddy current type
- Measurement range: iron/0 to 1500 μm , Non-ferrous/0 to 700 μm
- Minimum Resolution: 0.05 μm
- Accuracy: ±(1 μm + 0.75%)
- Base thickness: iron/0.3 mm, non-ferrous/40 μm
- Function: Number of measurements, maximum/minimum/mean value, standard deviation, etc.
- Memory: Calibration curve/10 data, measured value/10000 points
- Interface: USB Bluetooth
- Power supply : Main Unit/AA size battery x 2 pieces (test attachment) , Mini Print 7000 BT/Special rechargeable battery (attachment)
- Size: Body/75.5 x 49 x 157 mm, Mini Print 7000 BT/90 x 160 x 40mm
- Weight: built-in type type/approx. 175 g, Cord type/approx. 210g
- In compliance with DIN EN ISO 1461 and others, ASTM B 244 and others
