62-0583-51 Slim Diameter 600V Rated Power Cable For Robot (Without Shield) ORP-D (1.25Sq 6 Cores) 10m ORP-D1.25SQX6C2586
Product Description
Product Model: 62-0583-51Product Brand: FA Ubon Feature […]
Contact Us
Product Details
Product Model: 62-0583-51
Product Brand: FA Ubon
Features
- Robot cable for power supply that supports voltage up to 600 V.
- Adopting a special elastomer originally developed as an insulating material, it achieves both excellent b***ing performance and cost performance.
- The diameter is as thin as the 300 V rating while supporting the 600 V rating.
- Compatible with standard 300 V rated cables.
- It is flexible and easy to ***. It is also suitable for small devices with limited mounting space and difficult wiring.
Spec
- Cut length: 10m
- Conductor section size: 1.25sq
- Number of cores: 6
- UL SYLE： No. 2586 (rated 105°C 600V)
- Conductor: Tin plating annealed copper stranded wire
- Insulant: Special elastomer
- Sheath material: Oilproof PVC (black matting)
- Characteristics
- Number of sliding bent times: 100 million times or more
- Bent radius R: About 6 times as big as cable outer diameter
- Sliding speed: 70 times/min
- Moving distance: 350mm
- Number of swinging bent times: 20 million times or more
- Bent radius R: About 8 times as big as cable outer diameter
- Bent angle: ±90°
- Bent speed: 40 times/min
- Load: 4.9N
- Count: Counting 1 round trip as 1 time
- Number of twisting bent times: 20 million times or more
- Twisting angle: ±180°
- Twisting speed: 70 times/min
- Spacing X: 500mm
Related product recommendations
You may also be interested in the following products
dissectiontoolsandsupplies
62-6788-71 Persimmon Glaze Stack with Square Dash, Small T03-183
model: 62-6788-71
brand: M'S JAPAN
dissectiontoolsandsupplies

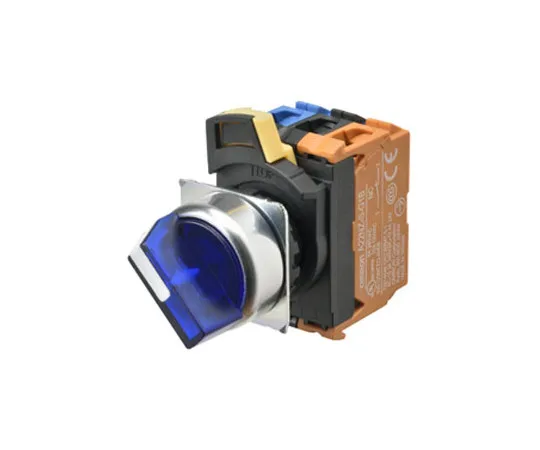

62-4241-16 ［Discontinued］Switch A22NN-BMA-URA-G111-NN
