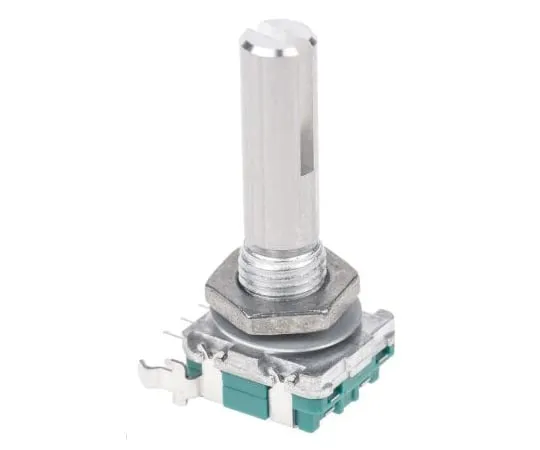

63-4749-03 Alps Alpine 15 Pulse Incremental Mechanical Rotary Encoder Slot Shaft, Through Hole EC11B152420G
Product Description
Product Model: 63-4749-03Product Brand: Alps Alpine Fea […]
Contact Us
Product Details
Product Model: 63-4749-03
Product Brand: Alps Alpine
Features
- mounting nut and washer. 11mm Low Profile Encoder. Output signal, channel A leads channel B by 60° ±30° with clockwise rotation 15 pulse - 30 detent Snap-in PCB and panel mountable Horizontal and vertical mount options Long life, high reliability End slotted metal shaft and Flatted shaft types Rotational life 15000 cycles Rated at 10mA 5Vdc Insulation resistance 300 Vdc 10MR min. Withstand voltage 300 Vac
Spec
- Quantity：1piece
- Pulses Per Revolution : 15
- Shaft Style : Slot
- Encoder Reading : Incremental
- Encoder Signal : Digital Square Wave
- Mounting Type : Through Hole
- Mounting Hole Diameter : 2.1 x 1.8 mm, 1 mm
- CODE No.:263-2930
