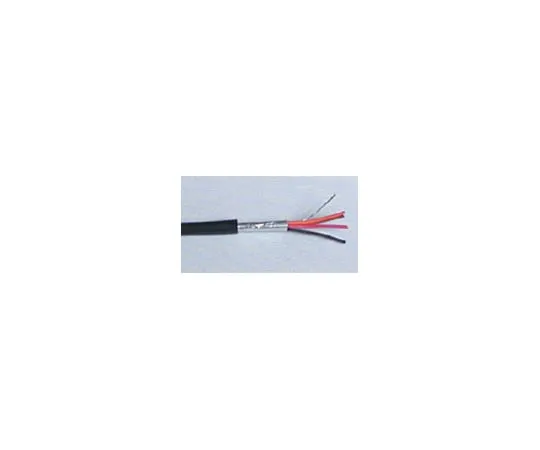

62-0565-11 Rs232c Long Distance Transmission Cable (Maximum Length Of 150m) CC27 4 Cores 1m CC2704RS232C
Product Description
Product Model: 62-0565-11Product Brand: FA Ubon Feature […]
Contact Us
Product Details
Product Model: 62-0565-11
Product Brand: FA Ubon
Features
- This cable has a very small capacitance between wires and shields, and a thick conductor of AWG24, so it has low DC resistance and can transmit up to 150 m.
- Double reinforced aluminum seed, strong against external noise.
- Applications: Serial printers, modems, scanners, CCD cameras, RS232C, RS422, RS485, etc. (Compliance with NEC, UL and CSA standards)
Spec
- Cut length: 1m
- Number of cores: 4
- Number of cores: 4 cores
- Conductor: 24AWG (7 x 32) tin plating line
- Insulation: 0.015" polyethylene
- Jacket (cover): Black PVC
- Temperature range: -40 - 75℃
- Voltage: 30V RMS
- Drain line: 24AWG (7 x 32) tin plating line
- Impedance: 120Ω
- Capacitance: 12.5pf/feet
- Electric resistance: 0.03Ω/feet
- Signal delay: 1.6ns/feet
- Transmission distance: 150m (at 9600bps)
- Shield: Strengthening aluminum mylar
- Standards: USA National Electrical Code CL-2
