automaticdiluter

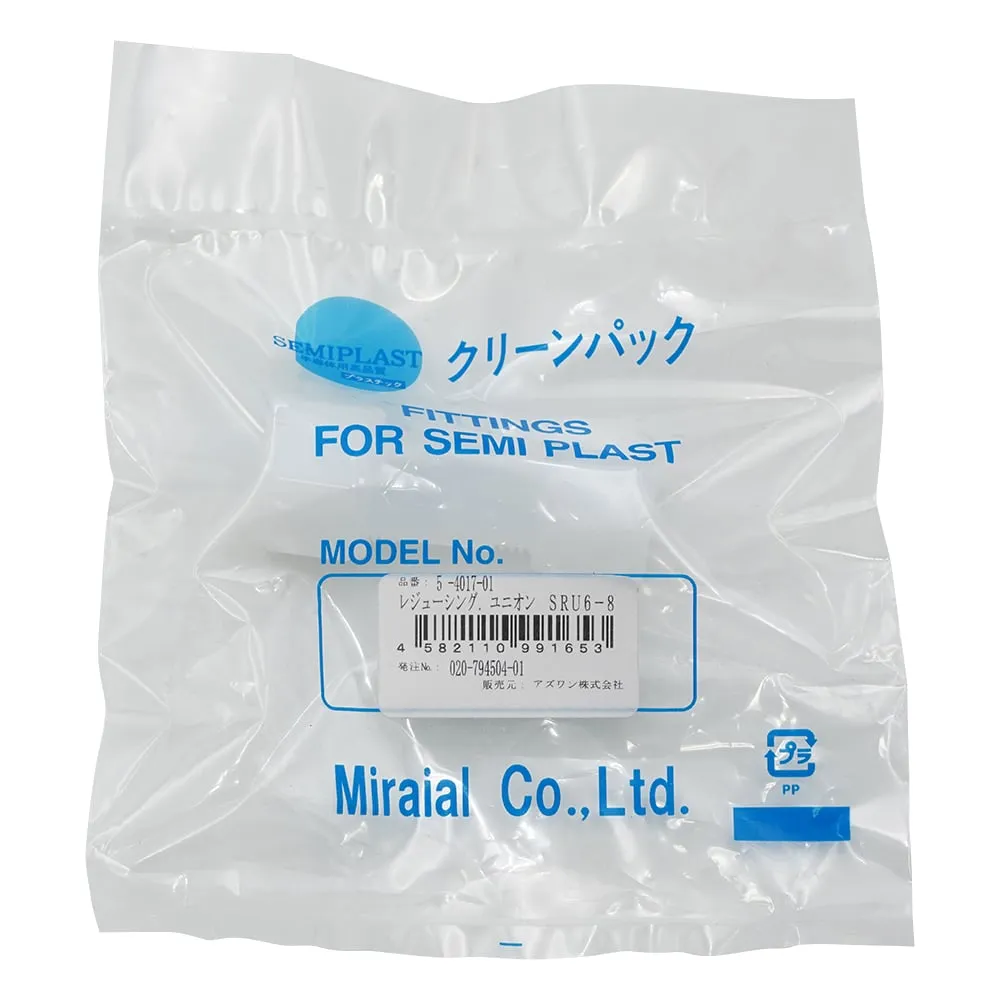

5-4017-01 Reducing Union (K-LOCK Reducer) SRU6-8
model:
5-4017-01
category:
automaticdiluter
Product Description
Product Model: 5-4017-01 Features All materials are mad […]
Contact Us
Product Details
Product Model: 5-4017-01
Features
- All materials are made of fluororesin (PFA, ETFE), and even highly corrosive chemicals can be transferred.
- The contact surface is PFA, so it is very clean.
- The taper shrinkage seal ensures the seal.
- High pressure resistance can be obtained with a structure that does not require tube processing.
Spec
- Model Number: SRU6-8
- Material: PFA (Fluorine Plastic)
- Tube diameter (Small / Large): 6/8 mm
- Orifice diameter: φ3 mm
- Screw diameter (Small / Large): 15/18 mm
