69-3941-99 φ100 Pressure Gage Pressure GV47 G3/8B D Frame (Mounting Bracket) GV47-133-0.1-0.1MPA
Product Description
Product Model: 69-3941-99Product Brand: NAGANO KEIKI Co […]
Contact Us
Product Details
Product Model: 69-3941-99
Product Brand: NAGANO KEIKI Co., Ltd.
Features

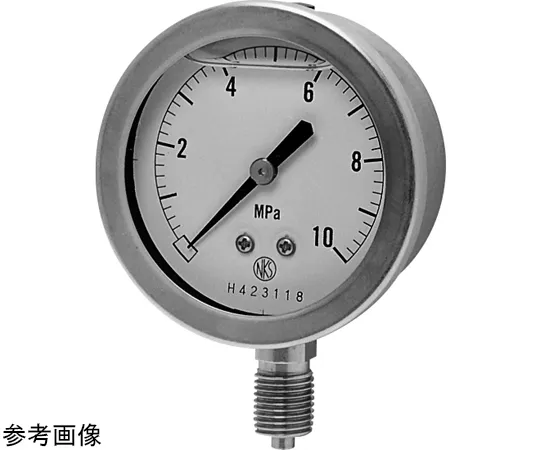

- It is a pressure gauge in which the internal mechanism is immersed in a filling liquid. Glycerin filled in the stainless steel case suppresses vibration of the moving part and prevents wear of the link mechanism.
- A highly durable pressure gauge suitable for *** under vibration that shortens the life of the gauge.
- The stainless steel wetted part and case material have excellent corrosion resistance and durability.
- The safety window (blowout disc) on the top of the instrument prevents the glass from breaking if the Brudon tube bursts.
- For φ60/φ70, an arrow-shaped safety mark can be attached to the pressure case and can be set to an arbitrary pressure value.
Spec
- Type: Pressureometer with Glycerin
- Size: φ100
- Pressure range: -0.1~0.1 MPa
- models: embedded
- Shape: D Frame (Mounting Bracket)
- Connecting Screws: G3/8B
- Wetted Part Material: SUS316
