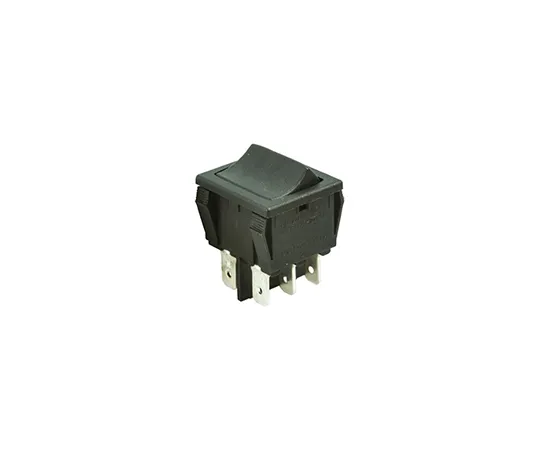

63-4748-04 Arcolectric Double Pole Double Throw (DPDT), On-Off-On Rocker Switch Panel Mount H8670VBAAA
Product Description
Product Model: 63-4748-04Product Brand: Arcolectric Fea […]
Contact Us
Product Details
Product Model: 63-4748-04
Product Brand: Arcolectric
Features
- ENEC, UL, CSA. Stk no ; 318-064 318-064 features red illumination, stk no. ; 318-070 318-070 features green illumination. Curved Rocker Switches. The single throw types have 3mm contact separation Electrical life: >10 ;sup>4 ;/sup> operations at full load Maximum operating temperature: +90°C Connection is by 4.8 ;font face="symbol">´ ;/font>0.8mm blade terminals Dimensions: H21, W15 (SP), W24 (DP), depth behind panel 12.5 (19.9 with terminals), max. panel thickness 3 mm
Spec
- Quantity：1piece
- Contact Configuration : Double Pole Double Throw (DPDT)
- Switch Operation : On-Off-On
- Panel Cut Out Width : 22mm
- Panel Cut Out Height : 19.4mm
- Contact Current Rating : 10 A @ 277 V ac
- Mounting Type : Panel Mount
- Terminal Type : Quick Connect
- Panel Cut Out Size : 19.4 x 22mm
- CODE No.:259-6610
