Features

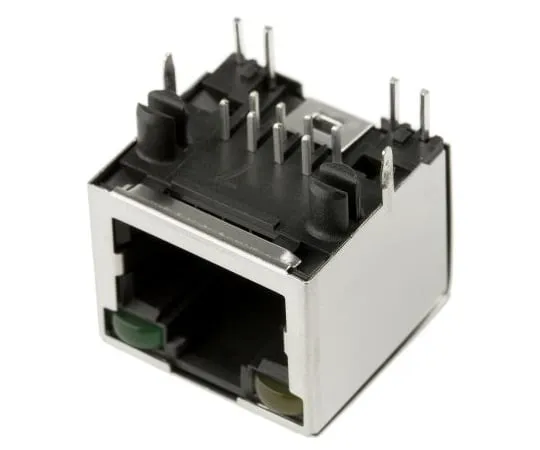

• For discrete types, viewing from the front of the socket, the green LED is on the right, the yellow on the left. Amphenol LED Sockets. From Amphenol, this range of PCB mounting RJ45 (8//8 way) socket have built-in LEDs and are designed for category 5 performance. Available in both shielded and unshielded versions, a thermoplastic body ensures a component that is robust and compact. The range is available not only with discrete green and yellow LEDs, but also with bi-colour LED versions. The bi-colour types have two LEDs, both with green/yellow indication. All models are highly reliable and excellent quality. Features ; Benefits. A maximum contact resistance of 10 mΩ. A minimum insulation resistance of 500 mΩ. A current rating of 1.5A. A voltage rating of 125 V ac. RJ45 Socket LED Ratings. Forward Current: 7 mA. Forward Voltage: 2 V to 1 V (Typical.). Reverse Voltage: 5 V Minimum. Power Dissipation Green: 24 mW. Power Dissipation Yellow: 36 mW
