gasmonitors

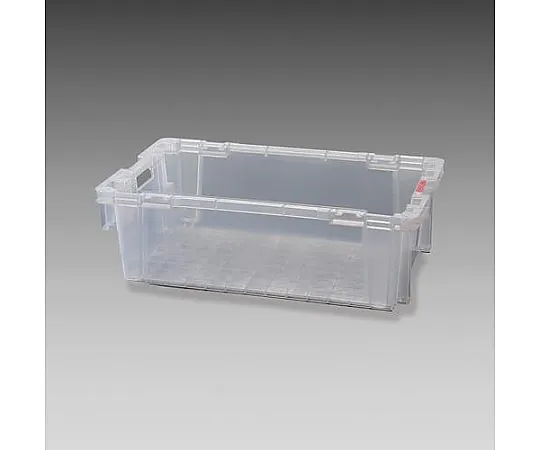

68-5195-16 718x430x229mm/50.0 L Container EA506AL-63
model:
68-5195-16
category:
gasmonitors
Product Description
Product Model: 68-5195-16 Features Stackable It is a ty […]
Contact Us
Product Details
Product Model: 68-5195-16
Features
- Stackable
- It is a type adopted in a stacking 2 color container (SN container) with the same color by 180° rotation. It is also called the same color and shape stacking type. By rotating the product 180° horizontally, two forms of stacking and nesting can be achieved. When stacking, it can be ***d for transporting and storing products. By nesting when empty boxes are ***d, the volume can be reduced and the storage location and transportation cost of empty boxes can be reduced. Designed with emphasis on load-bearing capacity during stacking, it has excellent strength during stacking. Compression Load in the Product Detail Specification (indicates the maximum compression load for the stacked product. Divide the value by 4 as a guideline).
- bearing hole
Spec
- Manufacturer: Sanko
- Model number: 205010
- Product Name: SN Container B#50
- Capacity: 50 L
- External Dimensions (mm): 718 x 430 x 229 (H)
- Color: clear
- Inner Dimensions (mm): 646 x 374 x 218 (H)
- Effective Inner Dimensions: 620 x 350 x 195 mm
- Compression load: 11.76 kN (1200kgf)
- Material: ABS
- Weight (g): 2502
- Bottom Shape: Grid Rib A grid rib (a plate shape erected perp***icular to the plane to reinforce the plane) is installed on the bottom surface. The rib height determines the b***ing strength, and the higher the rib, the higher the strength. It is often ***d in industrial containers, especially in industries that *** oil, and it has the effect of suppressing deflection due to swelling (a phenomenon in which resin absorbs oil, etc., and the volume increases).
- Nesting height: 108 mm
