gasmonitors

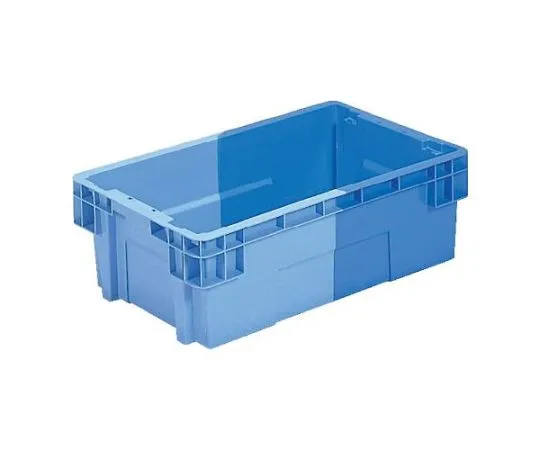

68-1816-70 614x382x203mm/34.8 L Container EA506AL-62
model:
68-1816-70
category:
gasmonitors
Product Description
Product Model: 68-1816-70 Features Stackable This type […]
Contact Us
Product Details
Product Model: 68-1816-70
Features
- Stackable
- This type is ***d in stacking 2 color containers (SN containers) with 180° rotation, and is also called different color and shape stacking type. By rotating the product 180° horizontally, two forms of stacking and nesting can be achieved. When stacking, it can be ***d for transporting and storing products. By nesting when empty boxes are ***d, the volume can be reduced and the storage location and transportation cost of empty boxes can be reduced. This type is designed for nesting efficiency and can reduce the volume by about 30~40%.
Spec
- Manufacturer: Sanko
- Model number: 203650
- Product Name: SN Container B#37
- Capacity: 34.8 L
- External Dimensions (mm): 614 x 382 x 203 (H)
- Color: Blue/Light Blue
- Inner Dimensions (mm): 554 x 339 x 199 (H)
- Effective Inner Dimensions: 524 x 309 x 183 mm
- Compression load: 10.00 kN (1020kgf)
- Material: Polypropylene
- Weight (g): 1850
- Bottom Shape: Oblique Grid Rib A diagonal grid rib (a plate shape erected perp***icular to the surface to reinforce the Flat surface) is installed on the bottom surface. This rib structure is particularly excellent in line (corocons, etc.) characteristics and allows smooth movement. It is also a structure that suppresses twisting.
- Nesting height: 83 mm
