Product Details

Product Model: 68-1816-69

Features

  • Stackable
  • It is a type adopted in a stacking 2 color container (SN container) with the same color by 180° rotation. It is also called the same color and shape stacking type. By rotating the product 180° horizontally, two forms of stacking and nesting can be achieved. When stacking, it can be ***d for transporting and storing products. By nesting when empty boxes are ***d, the volume can be reduced and the storage location and transportation cost of empty boxes can be reduced. Designed with emphasis on load-bearing capacity during stacking, it has excellent strength during stacking. Compression Load in the Product Detail Specification (indicates the maximum compression load for the stacked product. Divide the value by 4 as a guideline).
  • Both Short Sides Label Peeling Ribs Included
  • Bottom 2 Split Type

Spec

  • Manufacturer: Sanko
  • Model number: 202355

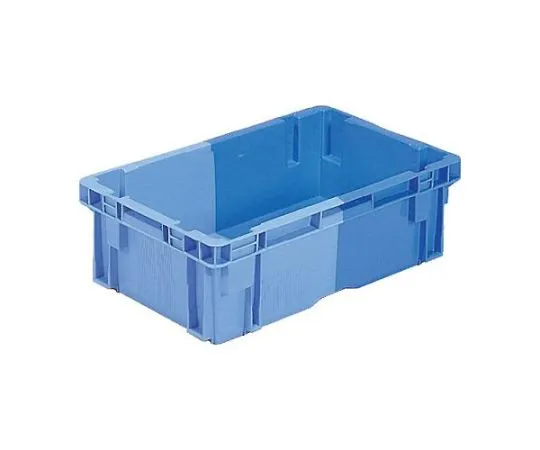

  • Product Name: SN Container B#23P
  • Capacity: 23 L
  • External Dimensions (mm): 564 x 356 x 175 (H)
  • Color: Blue/Light Blue
  • Inner Dimensions (mm): 514 x 310 x 160 (H)
  • Effective Inner Dimensions: 499 x 295 x 150 mm
  • Compression load: 20.3 kN (2070kgf)
  • Material: Polypropylene
  • Weight (g): 1700
  • Bottom Shape: The bottom shape does not belong to the standard classification. The shape is customized according to the environment and purpose.
