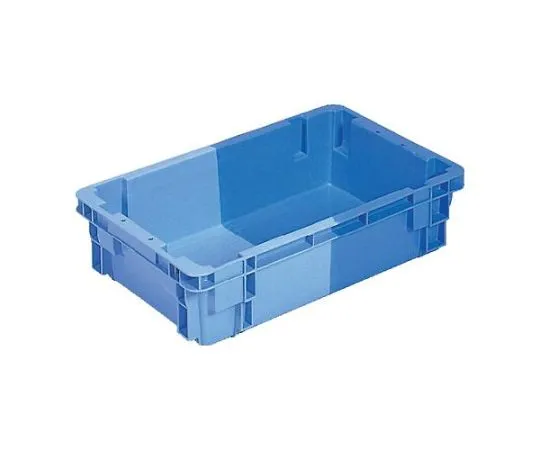

68-1816-68 560x360x142mm/20.4 L Container EA506AL-60
model:
68-1816-68
category:
gasmonitors
Product Description
Product Model: 68-1816-68 Features Stackable It is a ty […]
Contact Us
Product Details
Product Model: 68-1816-68
Features
- Stackable
- It is a type adopted in a stacking 2 color container (SN container) with the same color by 180° rotation. It is also called the same color and shape stacking type. By rotating the product 180° horizontally, two forms of stacking and nesting can be achieved. When stacking, it can be ***d for transporting and storing products. By nesting when empty boxes are ***d, the volume can be reduced and the storage location and transportation cost of empty boxes can be reduced. Designed with emphasis on load-bearing capacity during stacking, it has excellent strength during stacking. Compression Load in the Product Detail Specification (indicates the maximum compression load for the stacked product. Divide the value by 4 as a guideline).
Spec
- Manufacturer: Sanko
- Model number: 202051
- Product Name: SN Container B#20
- Capacity: 20.4 L
- External Dimensions (mm): 560 x 360 x 142 (H)
- Color: Blue/Light Blue
- Inner Dimensions (mm): 500 x 316 x 132 (H)
- Effective Inner Dimensions: 481 x 297 x 112 mm
- Compression load: 14.26 kN (1455kgf)
- Material: Polypropylene
- Weight (g): 1510
- Bottom Shape: Grid Rib A grid rib (a plate shape erected perp***icular to the plane to reinforce the plane) is installed on the bottom surface. The rib height determines the b***ing strength, and the higher the rib, the higher the strength. It is often ***d in industrial containers, especially in industries that *** oil, and it has the effect of suppressing deflection due to swelling (a phenomenon in which resin absorbs oil, etc., and the volume increases).
- Nesting height: 72 mm
