Electronic/Electrical Parts and Controll Equipments

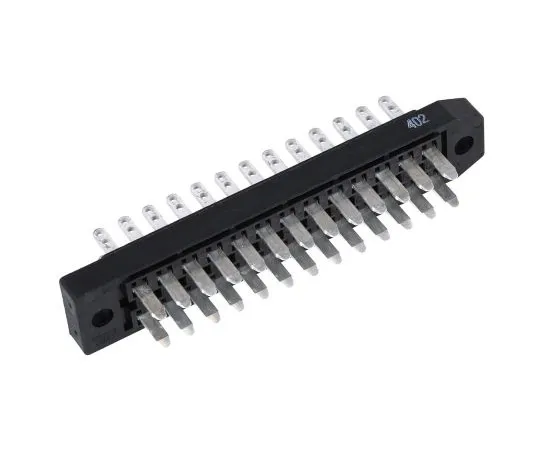

63-4747-50 TE Connectivity RP618 Series, 26 Way DIN 41618 Connector Plug, 8A C42334A48A5
model:
63-4747-50
brand:
TE Connectivity
Product Description
Product Model: 63-4747-50Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4747-50
Product Brand: TE Connectivity
Features
- RP618 Series DIN 41618 Male and Female Free Wiring Connectors. RP618 series 20 and 39 pin DIN 41618 male and female connectors with solder lugs for free wiring in accordance with DIN 41618. These RP618 series DIN 41618 plug and socket connectors have a current capacity of 8 or 6A and are available with silver or gold plated contacts. Insulation resistance ≥10 ;sup>6 ;/sup>Ω 1000 mating cycles service life Operating temperature range -55 to +155°C Contact resistance ≤5mΩ Operating Voltage 300V/250Vac
Spec
- Quantity：1piece
- G***er : Male
- Number of Contacts : 26
- Body Orientation : Straight
- Contact Plating : Silver
- Current Rating : 8A
- Voltage Rating : 300 V
- Series : RP618
- Maximum Operating Temperature : +125°C
- Minimum Operating Temperature : -55°C
- CODE No.:256-8485
