69-3917-18 φ75 Pressure Gauge JIS Compatible Sealed Pressure Gauge BC10 General G3/8B A Frame BC10-131-0.1-0.16MPA
Product Description
Product Model: 69-3917-18Product Brand: NAGANO KEIKI Co […]
Contact Us
Product Details
Product Model: 69-3917-18
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- Compatible with JIS B 7505-1:2007 Bourdon tube pressure gauge.
- A pressure gauge with a structure that transmits the elastic deformation (movement) of Bourdon tube pressure to the needle. The simple structure makes handling easy.
- It can measure in a wide pressure range and is ***d in a wide range of fields.
- The *** of a sealed case allows it to be ***d under conditions such as rain and fog. (Equivalent to JIS C 0920 IP 43)
- Standard conformity certification (type approval) is possible.
- The pressure setting range is wide and corrosion resistance is required.
Spec
- Type: Sealed pressure gauge
- Size: φ75
- Pressure range: -0.1~0.16 MPa
- models: vertical metal casing
- Shape: A Frame
- Connecting Screws: G3/8B
- Use: General ***
Related product recommendations
You may also be interested in the following products
toner
65-3636-01 MPP Plastic Sealed Pressure Gauge Core Section SUS B Type φ75 G3/8 0~0.06MPA S-BT38-750.06MPA
model: 65-3636-01
brand: Daiichi Keiki Mfg
toner
4-1721-01-57 Thermocouple Data Logger (stick type) with Chinese Calibration Certificate RX-450T
model: 4-1721-01-57
brand: AS ONE Corporation
toner

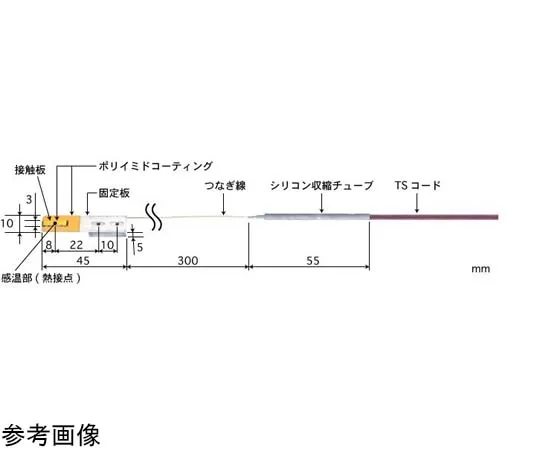

65-3535-39 ［Out of stock］Built-in Temperature Sensor for Moving Rotating Surface UH Series with ISO Document -50~210°C Type 17 E Type UH-17E-03-TS1-W
model: 65-3535-39
brand: ANRITSU METER CO., LTD.
toner

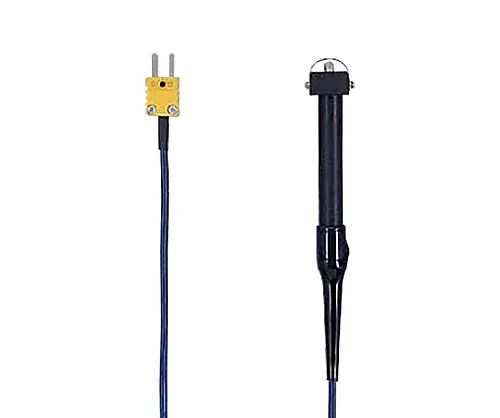

61-3516-12 ［Discontinued］Temperature Sensor K-8-250
