Electronic/Electrical Parts and Controll Equipments

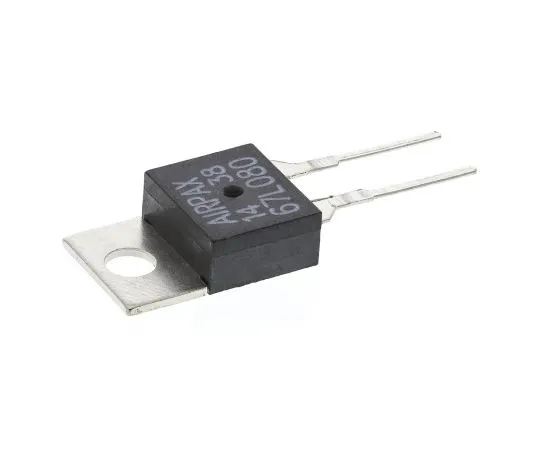

63-4746-88 Sensata / Airpax NC 1 A Bi-Metallic Thermostat, Opens at+80°C, Automatic Reset 67L080
model:
63-4746-88
brand:
Sensata / Airpax
Product Description
Product Model: 63-4746-88Product Brand: Sensata / Airpa […]
Contact Us
Product Details
Product Model: 63-4746-88
Product Brand: Sensata / Airpax
Features
- T0220 Thermostats. Miniature bimetallic thermostats TO-220 Housing Normally open and normally closed versions are available Tolerance ±5°C Resistance: 20mΩ 100000 cycles @ 5Vdc/20mA 38000 cycles @ 48Vdc/1A Dimension between leads: 5.08mm
Spec
- Quantity：1piece
- Minimum Temperature : +40°C
- Maximum Temperature : +130°C
- Opening Temperature : +80°C
- Thermostat Type : Bi-Metallic
- Switch Configuration : NC
- Contact Rating : 1 A
- Contact Voltage Rating : 48 V dc, 120 V ac
- Terminal Type : PCB Pin
- Reset Type : Automatic
- CODE No.:253-2745
