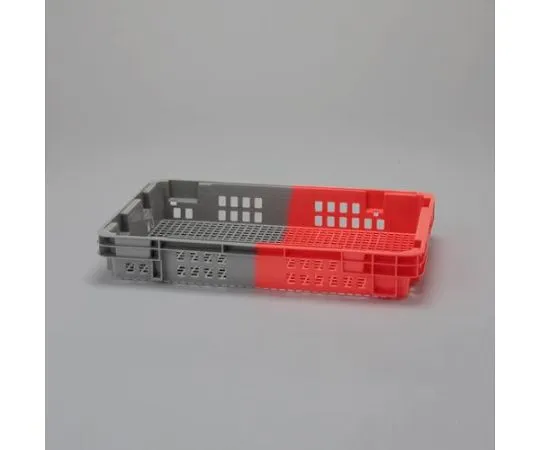

68-1815-15 587x368x91mm/13.5 L Container EA506AD-23B
model:
68-1815-15
category:
gasmonitors
Product Description
Product Model: 68-1815-15 Features It is a type adopted […]
Contact Us
Product Details
Product Model: 68-1815-15
Features
- It is a type adopted in a stacking 2 color container (SN container) with the same color by 180° rotation. It is also called the same color and shape stacking type. By rotating the product 180° horizontally, two forms of stacking and nesting can be achieved. When stacking, it can be ***d for transporting and storing products. By nesting when empty boxes are ***d, the volume can be reduced and the storage location and transportation cost of empty boxes can be reduced. Designed with emphasis on load-bearing capacity during stacking, it has excellent strength during stacking. Compression Load in the Product Detail Specification (indicates the maximum compression load for the stacked product. Divide the value by 4 as a guideline).
- Both Short Sides Label Peeling Ribs Included
- Stackable
Spec
- Manufacturer: Sanko
- Model number: 101352-00
- Product Name: SN Container C#13KS
- Capacity: 13.5 L
- External Dimensions (mm): 587 x 368 x 91 (H)
- Material: Polypropylene
- Inner Dimensions (mm): 544 x 331 x 81
- Effective Inner Dimensions: 526 x 315 x 70 mm
- Compression load: 9.31 kN (950kgf)
- Color: Red/Light Gray
- Weight (g): 1118
- Nesting height: 43 mm
- Bottom Shape: Grid Network The entire bottom surface is lined, and the lining itself has a grid-like rib structure (a plate shape erected perp***icular to the plane to reinforce the plane). The rib height determines the flexural strength, and the higher the rib, the higher the flexural strength and prevents the bottom from deflecting due to the stowage of heavy materials.
