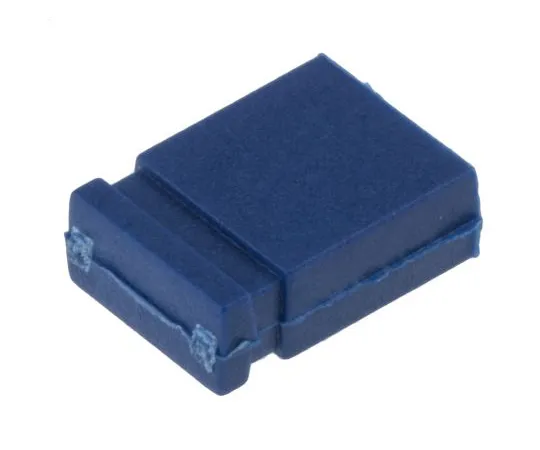

63-4746-10 RS Pro Shorting Link Female Straight Blue Closed Top 2 Way 1 Row 2.54mm Pitch 251-8519
Product Description
Product Model: 63-4746-10Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4746-10
Product Brand: RS PRO
Features
- RS Pro 2.54mm Closed Top Shorting Links. A series of RS Pro closed top shorting links with a 2.54 mm pitch. Each shorting link is designed to mate with 0.6 mm² headers with a recomm***ed header length 4.3 mm minimum. These 2.54 mm closed top shorting links have tin plated phosphor bronze contacts and a black glass filled PBT UL94V-0 housing, making them perfect for harsh environments. All models are highly reliable and excellent quality. Features ; Benefits. Straight orientation. Single row. Various colours available
Spec
- Quantity：1bag(10pieces)
- Type : Closed Top
- Number of Contacts : 2
- Pitch : 2.54mm
- G***er : Female
- Colour : Blue
- Number of Rows : 1
- Length : 4.98mm
- Width : 6.47mm
- Depth : 2.44mm
- Contact Material : Phosphor Bronze
- Contact Plating : Tin over Nickel
- Orientation : Straight
- Maximum Contact Resistance : 20mΩ
- CODE No.:251-8519
