Electronic/Electrical Parts and Controll Equipments

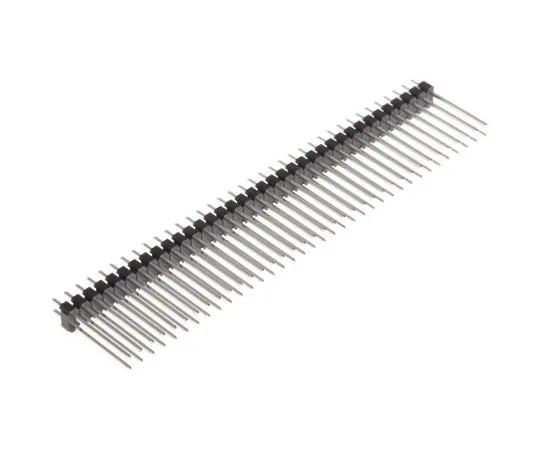

63-4746-03 RS Pro, 72 Way, 2 Row, Straight Pin Header 251-8424
Product Description
Product Model: 63-4746-03Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4746-03
Product Brand: RS PRO
Features
- RS 2.54mm Pitch Unshrouded PCB Pin Header Connectors with Square Pins. Our own range of RS Pro PCB headers are unshrouded headers with 0.635mm square pins. They feature a 2.54mm pitch and are made from UL94V-0 black glass filled PBT. The contacts are plated with a pure and bright tin. Our RS Pro PCB headers are a through-hole solder termination for easy and permanent ***. PCB Headers are ***d to connect two PCB boards together. This makes it highly efficient by not having to solder the board together or wire them and will save you time. It also makes it very easy to remove the second board if anything fails.. Features and Benefits:.
Spec
- Quantity：1bag(10pieces)
- Pitch : 2.54mm
- Number of Contacts : 72
- Number of Rows : 2
- Body Orientation : Straight
- Mating Pin Length : 14.5mm
- Tail Pin Length : 2.96mm
- Termination Method : Solder
- Contact Plating : Bright Tin
- Current Rating : 4A
- CODE No.:251-8424
