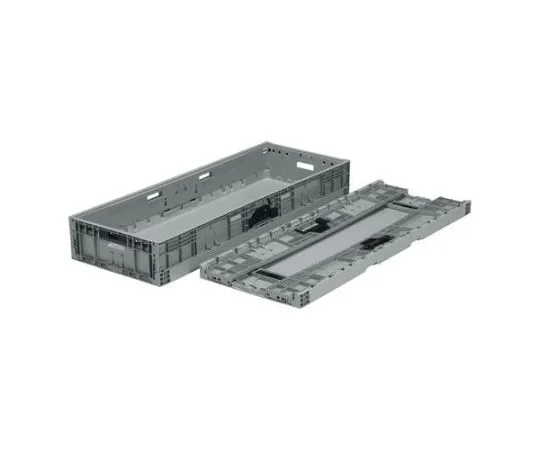

68-1814-96 1340x503x195mm/105 L Folded Container (Gray) EA506AA-221
model:
68-1814-96
category:
gasmonitors
Product Description
Product Model: 68-1814-96 Features Container Type TP St […]
Contact Us
Product Details
Product Model: 68-1814-96
Features
- Container Type TP Standard Container is an Container based on the TP Standard (a container standard developed jointly with major automakers to maximize logistics efficiency). It can be interfitted with all TP standard containers and can be stably fitted with containers of different sizes. TP standard Container has a different structure from ordinary Oricon, and it is an inner type Container without an upper frame. Therefore, it is possible to further reduce the volume when folding compared with ordinary Oricon, and it is possible to reduce the storage space and transportation cost when unpacked (when folding). Also, the one-touch lock mechanism is ***d when folding, so it is easy to unlock and there is no trouble in folding. When assembling, you only need to raise the side plate to assemble.
- Stackable
Spec
- Manufacturer: Sanko
- Model number: 556710
- Trade name: TPO-4122
- Capacity: 105
- External Dimensions (mm): 1340 x 503 x 195 (H)
- Material: Polypropylene
- Inner Dimensions (mm): 1300 x 453 x 178
- Effective Inner Dimensions: 1300 x 433 x 168 mm
- Color: light gray
- Weight (g): 5680
- Compression load: 18.04 kN (1840kgf)
- Total height when folding: 68 mm
- Bottom Shape: TP Grid Rib Sunbox (sticky container) TP Standard (container standard developed jointly with major automobile manufacturers to maximize logistics efficiency) The bottom shape is adopted for containers. The convex shape of the bottom surface, which is designed based on the TP standard, makes it possible to interfit all kinds of TP standard containers, and stable fitting is possible for containers of different sizes as well as well as well.
- Number of Bottom Blocks: 24
