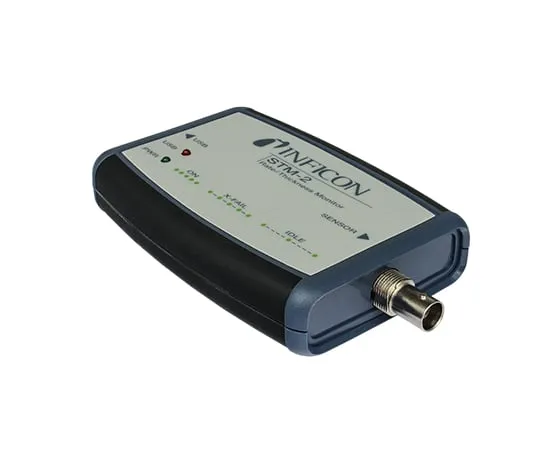

69-3849-29 film thickness monitor STM-2
Product Description
Product Model: 69-3849-29Product Brand: INFICON Feature […]
Contact Us
Product Details
Product Model: 69-3849-29
Product Brand: INFICON
Features
- Crystal vibration type film thickness monitor
- Easy installation
- Special software included
- Allows data logging
- *A sensor, feed-through, and crystal vibrator are required separately.
Spec
- PC connection: USB
- PC OS: Windows compatible
- Measuring frequency range: 6.0~5.0 MHz
- Resolution: ±0.037Å (when tool factor =1/density =1)
- Measurement period: Variable in 0.1 to 50 seconds
- Quartz Vibrator Measurable Start Frequency: 6 MHz
- Number of sensor connections: 1
- Size: 114 x 76 x 25.4 mm
- Weight: 57 g
- Product Warranty: 1 year from date of shipment
