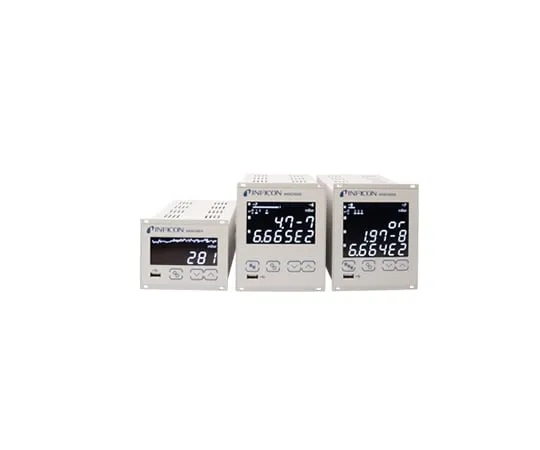

69-3849-14 Vacuum Gauge Controller 1 Channel Type VGC501 398-481
Product Description
Product Model: 69-3849-14Product Brand: INFICON Feature […]
Contact Us
Product Details
Product Model: 69-3849-14
Product Brand: INFICON
Features
- Vacuum Gauge Controller 1 Channel Type
- Inficon's current vacuum gauge automatic recognition
- Bright and clear display
- With Data Logging
- Support for EtherNet interface
- Analog output possible
- RoHS Compliance (as of October 2024)
Spec
- Output area: by connected vacuum gauge
- Powered: 100-240 VAC
- Frequency: 50-60 Hz
- Power consumption: < 45 W
- Set point relay: 2 points
- Cable connectors: FCC 8 pin and D-sub 15 pin
- Analog output: 1 point
- Size: 103.6 x 67.3 x 203.5 mm
- Weight: 850 g
- Product Warranty: 1 year from date of shipment
