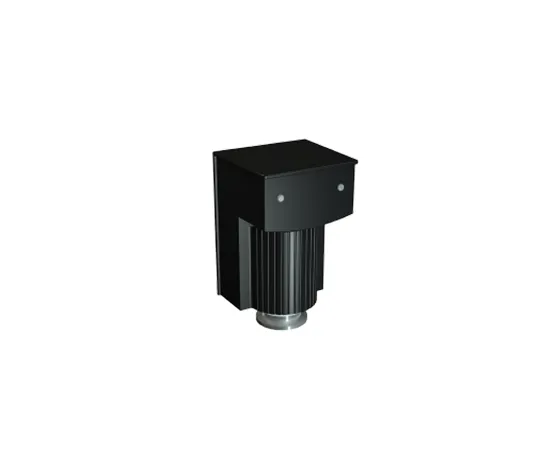

69-3849-08 Penning Gauge PEG100 DN25 ISO-KF 351-000
Product Description
Product Model: 69-3849-08Product Brand: INFICON Feature […]
Contact Us
Product Details
Product Model: 69-3849-08
Product Brand: INFICON
Features
- Penning gauge
- Allows measurement of high vacuum region
- External HV ON/OFF signal is required
- Available for current display VGC501/502/503
- Compatible with Infineon MAG500
- Replaceable internal parts
- Use of dedicated cable
- RoHS Compliance (as of October 2024)
Spec
- Measured Output Range: 1~1 x 10-7 Pa
- Recomm***ed measurement range: 1 x 10-2~1 x 10-6 Pa
- Measurement Accuracy: ±30% (1 x 10-2~1 x 10-6 Pa)
- Connecting Flange: DN25 ISO-KF
- cable connector: FCC 8-pin
- Operating ambient temperature: 5~55°C
- Size: 80 x 73 x 126 mm
- Weight: 500 g
- Product Warranty: 1 year from date of shipment
