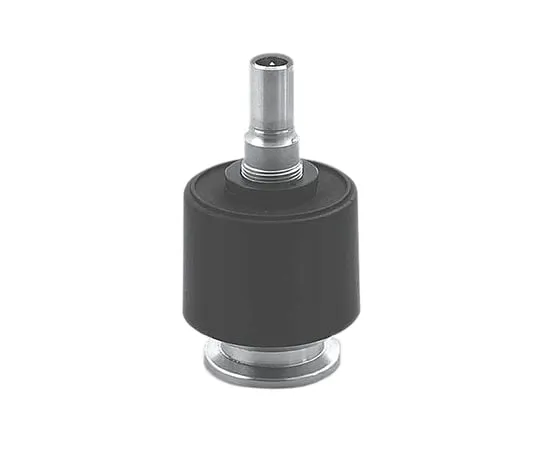

69-3849-06 Penning Gauge PEG050DN 25 ISO-KF 399-510
Product Description
Product Model: 69-3849-06Product Brand: INFICON Feature […]
Contact Us
Product Details
Product Model: 69-3849-06
Product Brand: INFICON
Features
- Penning gauge
- Allows measurement of high vacuum region
- External HV ON/OFF signal is required
- Available for older display VGC012/023/CM31
- Replaceable internal parts
- Use of dedicated cable
- RoHS Compliance (as of October 2024)
Spec
- Measured Output Range: 1~1 x 10-7 Pa
- Recomm***ed measurement range: 1 x 10-2~1 x 10-6 Pa
- Measurement Accuracy: ±30% (1 x 10-2~1 x 10-6 Pa)
- Connecting Flange: DN25 ISO-KF
- Operating ambient temperature: 5~55°C
- Size: φ50 x 127 mm
- Weight: 300 g
- Product Warranty: 1 year from date of shipment
