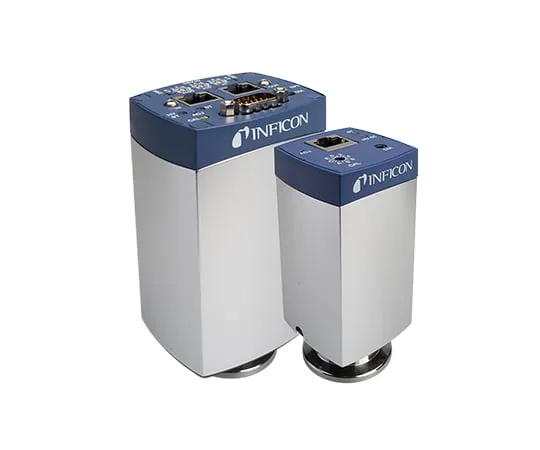

69-3848-98 Cold Cathode Gauge MPG500 DN25 ISO-KF 3MB0-006-000P
Product Description
Product Model: 69-3848-98Product Brand: INFICON Feature […]
Contact Us
Product Details
Product Model: 69-3848-98
Product Brand: INFICON
Features
- Inverted Magnetron Pilani composite vacuum gauge
- Allows measurement of a wide range of pressure areas
- Inverse Magnetron ON/OFF is automatically operated
- low floating field
- Replaceable on the sensor unit
- Replaceable internal parts
- RoHS Compliance (as of October 2024)
Spec
- Measured Output Range: 100,000~1 x 10-7 Pa
- Recomm***ed measurement area: 10,000~1 x 10-6 Pa
- Accuracy of measurement: ±30% (1~1 x 10-6 Pa)
- Connecting Flange: DN25 ISO-KF
- cable connector: FCC 8-pin
- Operating ambient temperature: 5~55°C
- Size: 44 x 44 x 94 mm
- Weight: 500 g
- Product Warranty: 1 year from date of shipment
