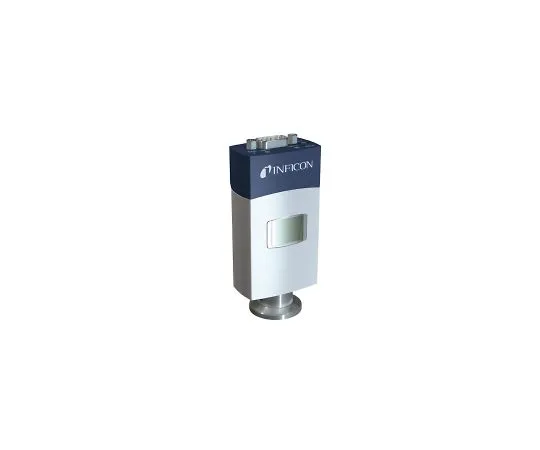

69-3848-52 Pirani Vacuum Gauge PCG550 DN16 ISO-KF 3PC1-001-0000
Product Description
Product Model: 69-3848-52Product Brand: INFICON Feature […]
Contact Us
Product Details
Product Model: 69-3848-52
Product Brand: INFICON
Features
- Pilani capacitance diaphragm composite vacuum gauge
- robust filament
- Free mounting direction
- The sensor unit can be replaced.
- Can be ***d with vacuum indicator VGC501/502/503
- With atmospheric pressure switch function (separate special cable required)
- RoHS Compliance (as of October 2024)
Spec
- Measured Output Range: 150,000~5 x 10-3 Pa
- Recomm***ed measurement range: 150,000 Pa to 1 x 10-1 Pa
- Measurement accuracy: ±2.5% to 15% (recomm***ed measurement range)
- Filament Material: Tungsten
- Supply: +15~30 V (DC)
- Connecting Flange: DN16 ISO-KF
- cable connector: FCC 8-pin
- Operating ambient temperature: 5~50°C
- Size: 45 x 28 x 94 mm
- Weight: 120 g
- Product Warranty: 1 year from date of shipment
