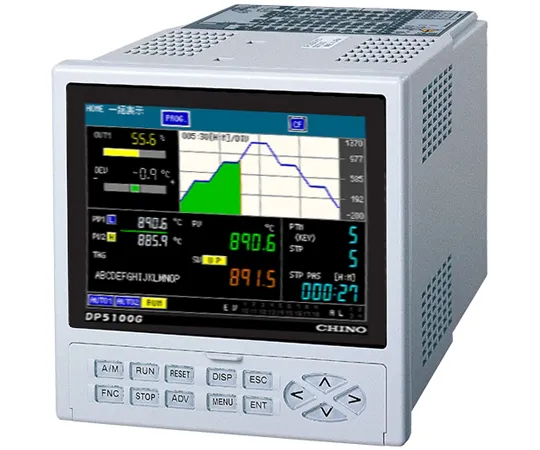

68-9427-22 High-Performance Graphic Program Adjuster On-Off Pulse Pid Type DP51A1GF11-G10
Product Description
Product Model: 68-9427-22Product Brand: CHINO CORPORATI […]
Contact Us
Product Details
Product Model: 68-9427-22
Product Brand: CHINO CORPORATION
Features
- The DP5100G Series offers a wide range of applications that require precise and complex pattern control, including advanced monitoring functions and interactive settings.
- Up to 99 patterns of 99 steps (max. 2000 steps) can be set and stored.
- Wide area control using 2-input switching, heating and cooling control using output 4 channels, and various analog transmission are supported.
- It is possible to set detailed functions such as time events, various alarm events, actual temperature compensation, PV start, etc.
Spec
- Size: H144 x W144 x D240mm
- Mass: Approx. 1.7 kg
- Rated supply voltage: 100-240 VAC, 50/60Hz
- Maximum power consumption: 40VA
- Adjustment Mode (1st Output): Current Output Type PID (High Precision Type: 4~20 mA DC)
- Adjustment Mode (Second Output): On/Off Pulse PID Type
- Communication interface: RS-485 (COM1) +RS-485 (COM2)
- Auxiliary Output: Current Output 4~20 mA(Two points: CH1, CH2)
- External input/output signal (DI, DO): Voltage free contact input and open collector
