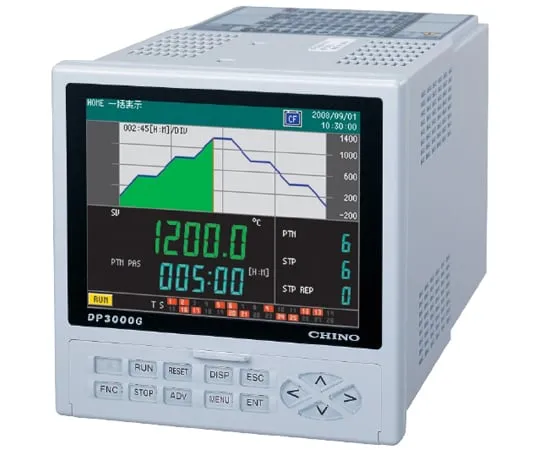

68-9427-17 Graphic Program Setter Setting Output Signal: Digital Output (Rs-422 A) DP3-10G000-G10
Product Description
Product Model: 68-9427-17Product Brand: CHINO CORPORATI […]
Contact Us
Product Details
Product Model: 68-9427-17
Product Brand: CHINO CORPORATION
Features
- The DP3000G series is a graphic-type program setter that employs a 5.6 inch color liquid crystal display with excellent visibility.
- Up to 200 program patterns (up to 4000 steps) can be memorized, and execution patterns can be recalled and operated as desired.
- 30 time signals can be selected. Up to 28 points can be allocated to the external output.
- All settings such as program patterns and various parameters can be written to/read from the Compact Flash Card, making it easy to manage the settings.
Spec
- Size: H144 x W144 x D240mm
- Mass: Approx. 1.6 kg
- Rated supply voltage: 100-240 VAC, 50/60Hz
- Maximum power consumption: 30VA
- Number of steps: Max. 199 steps per 1 pattern
- Number of patterns: Max. 200 patterns
- Total Steps: Up to 4000 Steps
- Repeat: pattern max. 9999 times, step max. 99 times
- Set Output Signal: Digital Output (RS-422 A)
