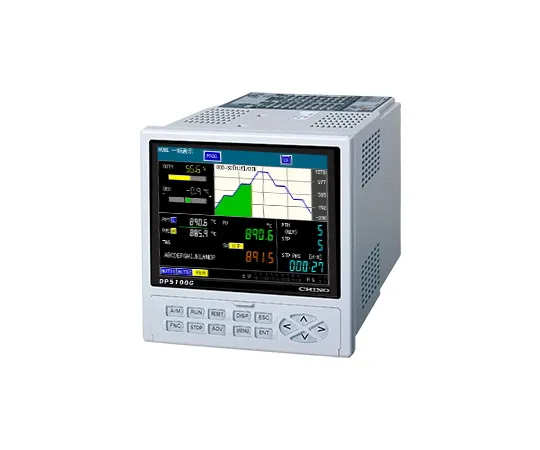

68-9427-08 Graphic Program Regulator For Wide Area Control On-Off Pulse Type DP2110G000-G10
Product Description
Product Model: 68-9427-08Product Brand: CHINO CORPORATI […]
Contact Us
Product Details
Product Model: 68-9427-08
Product Brand: CHINO CORPORATION
Features
- The DP2000G series is a graphic-type program controller for wide-area control that divides the control area into two parts, i.e., a low range and a high range, and switches automatically at the switching point of the area.
- Easy-to-read color liquid crystal displays program patterns and other data in an easy-to-understand manner.
- In addition to batch display, various monitor display screens such as numerical enlargement display, bar graph display and tr*** display are available.
- Parameter editing software for personal computers is included as standard.
Spec
- Size: H144 x W144 x D240mm
- Mass: Approx. 1.7 kg
- Rated supply voltage: 100-240 VAC, 50/60Hz
- Maximum power consumption: 50VA
- Number of program patterns: Max. 200 patterns (pattern repetition max. 9999 times)
- Program Steps: Max. 199 Steps/Pattern (Max. 99 Step Repeats)
- Total Steps: Up to 4000 Steps
- Adjustment mode (first output): On/off pulse type
