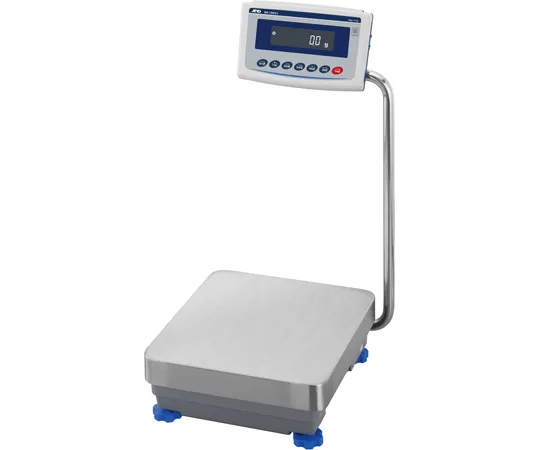

68-5236-70 Dust-proof, waterproof, heavy-weight balance with general calibration Amount of hail: 12 kg GX12001L-00A00
Product Description
Product Model: 68-5236-70Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 68-5236-70
Product Brand: A&D
Features
- Comes with a certificate of general calibration.
- Built-in weight type allows automatic sensitivity adjustment.
- Dustproof and waterproof IP65, it is safe when measuring powder or liquid. It has a robust body and is suitable for built-in applications, as well as for measuring powder.
- Swing arm type (integrated type), angle adjustment of about 100 degrees is possible.
- Upon incorporation of the production line
- ISD [Impact Shock Detection]: A four-step warning display and a buzzer are ***d to notify you when an impact is applied to the measuring plate.
- For liquid metering such as pump flow rate
- FRD Flow Rate Display: Calculates the change in load as the flow rate. High precision flow rate measurement is possible with the balance alone.
- For checking repeatability of balance and minimum metric value
- ECL [Electronically Controlled Load]: A & D's unique internal thread take-up mechanism calculates thread take-up repeatability in about 90 seconds without using external weights.
- 2ch output standard of RS-232C interface (D-Sub9P male)/USB interface (Mini B type).
- The optional Bluetooth® communication interface (GXL-27JA) enables wireless data transmission to smartphones, PCs, external displays (AD-8931 JA), etc. *A PC dongle AD-8541PC-JA is required for two-way communication with a PC.
- With comparator function, statistical calculation function, specific gravity measurement function, clock function, and tare bag value output function.
- It has a security function to restrict the ***r of the balance and the setting of the watch.
Spec
- Hail volume: 12 kg
- Minimum display: 0.1 g
- Measuring tray dimensions: 344 (W) x 384 (D) mm
- Display unit: g/kg/pcs (number) /% (percentage)/ct (carat)/mom (monme)/specific gravity
- Stable time (typical value when FAST is configured): Approx. 1.5 seconds
- Number of data memories: up to 200 (metric value)
- Interface: RS-232C (D-Sub9P)/USB Mini B/LAN (optional)/Bluetooth (optional)
- Dustproof/Waterproof rating: IP65
- Power: AC Adapter (included)
- Material of measuring plate: SUS304
- External Dimensions: 372 (W) x 612 (D) x 130 (H) mm
- Body mass: 16.2 kg
- Accessories: Quick Start Guide, AC Adapter, Display Protection Cover, USB Cable, General Calibration Certificate
- *To *** the RS-232C interface with dustproof and waterproof specifications (IP65), *** the separately sold waterproof cable AX-KO2737-500JA or AX-KO7695-500, dep***ing on the model to be connected.
- *The client name and address on the certificate will be blank.
- *The delivery time will be around 2 weeks beca*** we will proofread your order after it is confirmed. (However, please **** that it takes additional days for the New Year's holiday and the New Year holiday.)
- *As this is a made-to-order product, we cannot accept cancellations, returns or returns after ordering.
