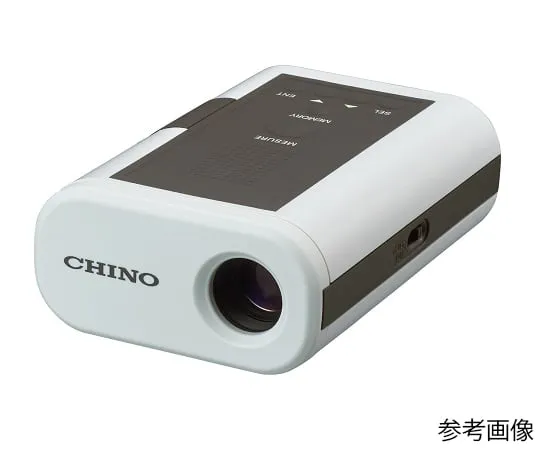

68-1968-35 Portable Radiation Thermometer For Monochromatic Medium Temperature IR-HAINN
Product Description
Product Model: 68-1968-35Product Brand: CHINO CORPORATI […]
Contact Us
Product Details
Product Model: 68-1968-35
Product Brand: CHINO CORPORATION
Features
- In addition to the display on the rear of the unit, there is also a measurement value display in the viewfinder, so you can view the measurement value while checking the target.
- Beca*** the measurement wavelength is as short as 0.9 μm and 1.55 μm, the influence of the emissivity is small.
- It has a K-thermocouple input and can perform emissivity correction according to the K-thermocouple indication.
- Compact and lightweight, easy to grip and operate
- Measured values are displayed in the display section at the rear of the main unit and in the viewfinder.
- With a built-in dimming filter in the direct view finder, high-temperature measurement targets can be visually recognized
- Equipped with a thermocouple input, emissivity can be set according to thermocouple instructions.
- Easy data management with SD card (sold separately)
Spec
- Model: For Medium Temperature
- Detector: InGaAs
- Measurement wavelength: 1.55 μm
- Temperature Range: 300~1000°C
- Accuracy rating: +/- 6 deg. C
- Reproducibility: within 1°C
- Resolution: 1°C
- Response time: 0.2 s
- Measuring Diameter/Measuring Distance: Fixed Focus φ20/4000mm
- aiming: direct viewfinder
- Power Supply: 2 AA Batteries, AC Power Adapter (Sold Separately)
- External Dimensions: W150 x H100 x D50mm
